Part Number # 1SVR427041R0000
SKU # 2163862
1SVR427041R0000

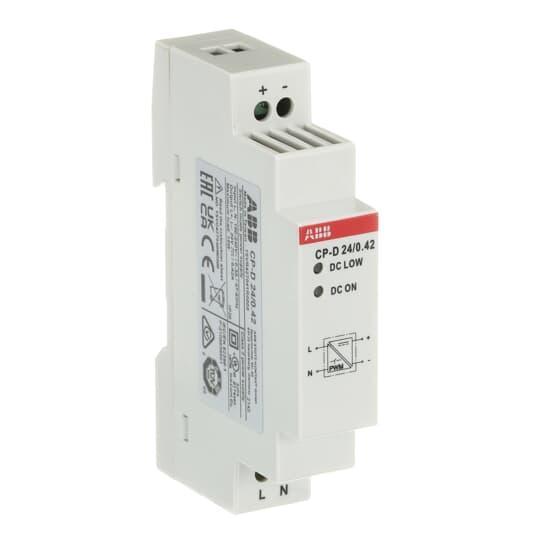

ABB 1SVR427041R0000 Primary Switch Mode Power Supply
Part Number # 1SVR427041R0000
SKU # 2163862
$123.90 / Each
Typical price:$147.68 / Each
ABB 1SVR427041R0000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR427041R0000 |
| SKU #: | 2163862 |
| Amperage Rating: | 120.6 mA Input/0.42 A Output |
| Case Material: | Plastic |
| Frequency Rating: | 47 to 63 Hz |
| Input Voltage: | 100 to 240 V AC |
| Type: | Type CP-D 1-Phase |
| Country of origin: | CN |
| Depth: | 57.5 mm |
| Height: | 91 mm |
| Output voltage: | 24 V DC |
| Width: | 18 mm |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121004 |
| UPC: | 04016779661164 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$123.90 / Each
Typical price:$147.68 / Each
Quantity:
- ABB, 1SVR427041R0000, Switch Mode Power Supply, Type CP-D 1-Phase, 100 to 240 V AC Input, 24 VDC Output, 10 W Power, 120.6 mA Input, 0.42 A Output, 47 to 63 Hz Frequency, DIN Rail Mounting, Plastic Case, 18 mm Width, 57.5 mm Depth, 91 mm Height
1SVR427041R0000 Application
For applications that require a lower cost 24 VDC at 0.42 A power supply1SVR427041R0000 Item Features
- Light gray enclosure in RAL 7035
- Power reserve up to 50%
- Integrated input fuse
- Low power dissipation and low heating
- LEDs for status indication
- Structural form ideal for installation in distribution panels
- U/I characteristic (fold forward behaviour at overload - no switch off)
- Free convection cooling (no forced cooling with ventilators)
- Efficiency of type 80%
- Open circuit, overload and short circuit stable
- Ambient temperature range during operation -40 to 70 deg C
- 100 to 240 VAC (90 to 264 VAC, 120 to 375 VDC) wide range input
1SVR427041R0000 Standards
CCC Certified|CE Certified|CAN/CSA C22.2 No.107.1|CAN/CSA C22.2 No.60950|CAN/CSA C22.2 No.223|cUL Listed|EAC Certified|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UR Listed|UL 508|UL 60950|UL 1310|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|UL 60950|UL 1310|CAN/CSA C22.2 No. 107.1|CAN/CSA C22.2 No. 60950|CAN/CSA C22.2 No. 223|CCC Certified|cUL 508 File No. E174460|cUL Recognised|EAC Certified|CE CertifiedSKU #2163862Part Number #1SVR427041R0000UNSPSC39121004UPC04016779661164
