ABB 1SVR427041R1000 Primary Switch Mode Power Supply
Part Number # 1SVR427041R1000
SKU # 2219558
ABB 1SVR427041R1000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR427041R1000 |
| SKU #: | 2219558 |
| Amperage Rating: | 200 mA Input/0.83 A Output |
| UNSPSC: | 39121004 |
| UPC: | 04016779661201 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR427041R1000 Primary Switch Mode Power Supply
Brand: ABB
Part Number: 1SVR427041R1000
ABB Primary Switch Mode Power Supply, 90 to 264 VAC/120 to 375 VDC Input, 12 VDC Output, 10 W Power, 200 mA Input, 0.83 A Output, 47 to 63 Hz Frequency, Snap-On/DIN Rail Mounting, 18 mm Width, 57.5 mm Depth, 91 mm Height
Additional Description: ABB -1SVR427041R1000 (N) CP-D 12/0.83 POWER SUPPLY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: The CP-D 12/0.83 is a power supply from the CP-D range. The primary switch mode power supply offers a wide range input of 90-264 V AC and 120-375 V DC, rated input voltage is 100-240 V AC. The rated output power is 10 W, rated output current is 0.83 A at an output voltage of 12 V DC. The power supply provides a U/I output characteristic.
1SVR427041R1000 Application
For applications that require a lower cost 12 VDC at 0.83 A power supply1SVR427041R1000 Item Features
- Light gray enclosure in RAL 7035
- Power reserve up to 50%
- Integrated input fuse
- Low power dissipation and low heating
- LEDs for status indication
- Structural form ideal for installation in distribution panels
- Output voltage adjustable via front face rotary potentiometer "OUTPUT Adjust
- U/I characteristic (fold forward behaviour at overload - no switch off)
- Free convection cooling (no forced cooling with ventilators)
- Open circuit, overload and short circuit stable
- Ambient temperature range during operation -40 to 70 deg C
- 100 to 240 VAC (90 to 264 VAC, 120 to 375 VDC) wide range input
- Efficiency of type 78%
1SVR427041R1000 Standards
IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|UL 60950|UL 1310|CAN/CSA C22.2 No. 107.1|CAN/CSA C22.2 No. 60950|CAN/CSA C22.2 No. 223|CCC Certified|cUL 508 File No. E174460|cUL Recognised|EAC Certified|CE Certified|BAA Compliant|CCC Certified|CE Certified|CAN/CSA C22.2 No.107.1|CAN/CSA C22.2 No.60950|CAN/CSA C22.2 No.223|cUL Listed|EAC Certified|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UR Listed|UL 508|UL 60950|UL 1310SKU #2219558Part Number #1SVR427041R1000UNSPSC39121004UPC04016779661201

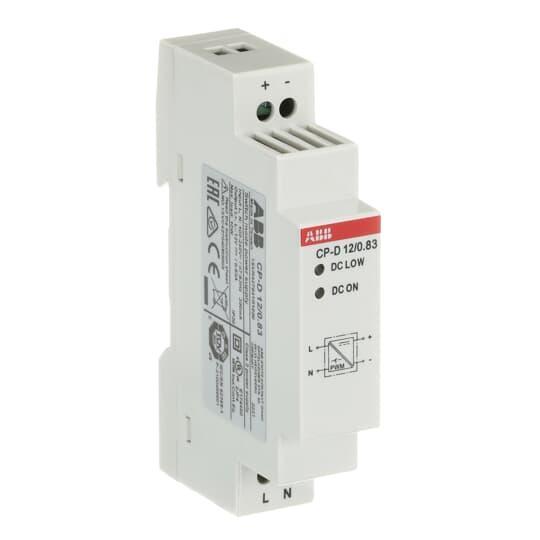

Image provided may only be a representation of final product and may include optional equipment
