Part Number # 1SVR427043R1200
SKU # 2195370
Image Disclaimers Message
1SVR427043R1200

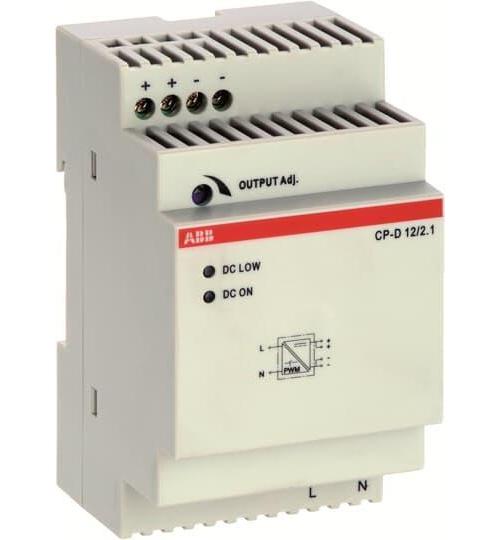

ABB 1SVR427043R1200 Power supply with 90-264 V AC/ 120-375
Part Number # 1SVR427043R1200
SKU # 2195370
$147.09 / Each
Typical price:$193.23 / Each
ABB 1SVR427043R1200 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR427043R1200 |
| SKU #: | 2195370 |
| Amperage Rating: | 502 mA Input, 2.1 A Output, 502 mA Input/2.1 A Output |
| Case Material: | Plastic |
| Frequency Rating: | 47 to 63, 47 to 63 Hz |
| Input Voltage: | 90 to 264 VAC/120 to 375 VDC |
| Type: | Type CP-D 1-Phase |
| Country of origin: | CN |
| Depth: | 57.5, 57.5 mm |
| Height: | 91, 91 mm |
| Mounting type: | DIN Rail, DIN Rail/Snap-On |
| Output voltage: | 12, 12 VDC |
| Width: | 53, 53 mm |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121004 |
| UPC: | 04016779661218 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$147.09 / Each
Typical price:$193.23 / Each
Quantity:
- ABB, 1SVR427043R1200, Switch Mode Power Supply, Type CP-D 1-Phase, 90 to 264 VAC/120 to 375 VDC Input, 12 VDC Output, 25 W Power, 502 mA Input, 2.1 A Output, 47 to 63 Hz Frequency, DIN Rail Mounting, Plastic Case, 53 mm Width, 57.5 mm Depth, 91 mm Height
1SVR427043R1200 Specifications
- Power reserve up to 50%
1SVR427043R1200 Application
For applications that require a lower cost 12 VDC at 2.1 A power supply1SVR427043R1200 Item Features
- Light gray enclosure in RAL 7035
- Power reserve up to 50%
- Integrated input fuse
- Low power dissipation and low heating
- LEDs for status indication
- Structural form ideal for installation in distribution panels
- Output voltage adjustable via front face rotary potentiometer "OUTPUT Adjust
- U/I characteristic (fold forward behaviour at overload - no switch off)
- Free convection cooling (no forced cooling with ventilators)
- Efficiency of type 80%
- Open circuit, overload and short circuit stable
- Ambient temperature range during operation -40 to 70 deg C
- 100 to 240 VAC (90 to 264 VAC, 120 to 375 VDC) wide range input
1SVR427043R1200 Standards
IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|UL 60950|UL 1310|CAN/CSA C22.2 No. 107.1|CAN/CSA C22.2 No. 60950|CAN/CSA C22.2 No. 223|CCC Certified|cUL 508 File No. E174460|cUL Recognised|EAC Certified|CE Certified|BAA Compliant|CCC Certified|CE Certified|CAN/CSA C22.2 No.107.1|CAN/CSA C22.2 No.60950|CAN/CSA C22.2 No.223|cUL Listed|EAC Certified|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UR Listed|UL 508|UL 60950|UL 1310SKU #2195370Part Number #1SVR427043R1200UNSPSC39121004UPC04016779661218
