Part Number # 1SVR427060R1000
SKU # 2266297
Image Disclaimers Message
1SVR427060R1000

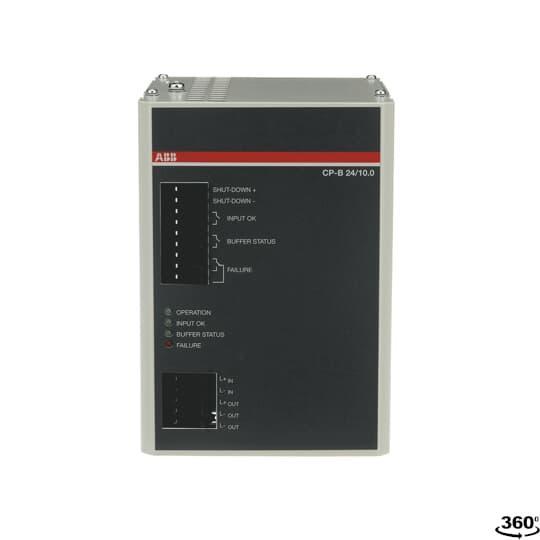

ABB 1SVR427060R1000 Buffer Module
Part Number # 1SVR427060R1000
SKU # 2266297
$4085.84 / Each
Typical price:$5367.66 / Each
ABB 1SVR427060R1000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR427060R1000 |
| SKU #: | 2266297 |
| Amperage Rating: | 10, 10 A |
| Case Material: | Steel Sheet |
| Input Voltage: | 24 VDC |
| Size: | 151 mm L x 116 mm W x 168 mm H |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Type: | Type CP-B 1-Phase |
| Country of origin: | DE |
| Depth: | 6.69 in |
| Height: | 6.69 in |
| Mounting type: | DIN Rail |
| Output voltage: | 24 VDC |
| Power supply: | 240, 240 W |
| Width: | 4.57 in |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121004 |
| UPC: | 04016779782593 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4085.84 / Each
Typical price:$5367.66 / Each
Quantity:
- ABB, 1SVR427060R1000, Power Supply, Type CP-B 1-Phase, 24 VDC Input, 24 VDC Output, 240 W Power, 10 A, DIN Rail Mounting, Steel Sheet Case, 4.57 in Width, 6.69 in Depth, 6.69 in Height
1SVR427060R1000 Application
For applications where power loss buffers are used1SVR427060R1000 Item Features
- Power reserve up to 50%
- 1 control signal input for specifically switch off, SHUT-DOWN
- Maintenance-free
- Temperature-resistant
- 2 relay contacts, normally open, INPUT OK and BUFFER STATUS status signal
- Typical charging time <134 s at 100% load current
- Expandable with up to 2 extension modules CP-B EXT.2
- Buffer module for supporting the supply system in case of mains failure
- 1 relay contact, change over, FAILURE status signal
- 4 LEDs for indication of operational states
- No deep discharge
1SVR427060R1000 Standards
IEC/EN 662040-2|CAN/CSA C22.2 No. 107.1|EN 50178/50581/55011|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-4|IEC/EN 62040-2|UL 508|cUL Listed|CE Certified|EAC Certified|BAA Compliant|CE Certified|CAN/CSA C22.2 No.107.1|cUL Listed|EAC Certified|EN 50178|EN 50581|EN 55011|IEC/EN 60950-1|IEC/EN 61000-6-2|IEC/EN 61000-6-4|IEC/EN 62040-2|UL 508SKU #2266297Part Number #1SVR427060R1000UNSPSC39121004UPC04016779782593
