Part Number # 1SVR550800R9300
SKU # 2346228
1SVR550800R9300

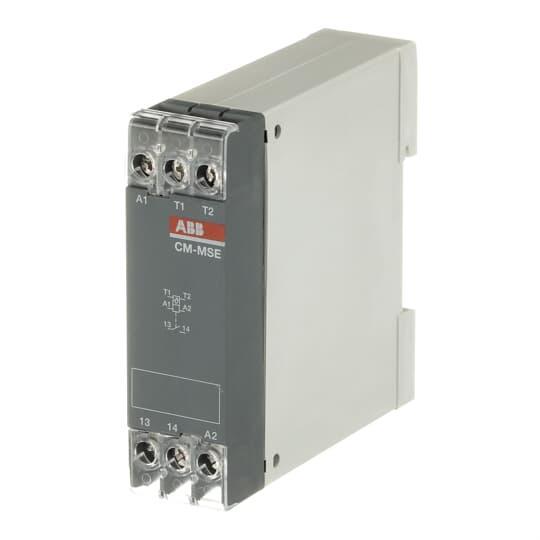

ABB 1SVR550800R9300 Thermistor Motor Protection Relay
Part Number # 1SVR550800R9300
SKU # 2346228
ABB 1SVR550800R9300 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR550800R9300 |
| SKU #: | 2346228 |
| Amperage Rating: | 4 A |
| Coil Voltage: | 110 to 130, 110 to 130 VAC, 110/130 V AC, 110/130 VAC |
| Contact Form: | 1NO, 1NO 1 Form A |
| Contact Rating: | 4 A at 250 V |
| Dimensions: | 22.5 mm W x 78.5 mm D x 78 mm H, 78.5 mm L x 22.5 mm W x 78 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50, IP50/IP20 |
| Frequency Rating: | 50 to 60, 50 to 60 Hz, 50/60 Hz |
| Series: | CM-MSE |
| Temperature Rating (Degrees F): | -20 to 60, -20 to 60 deg C |
| Terminal Type: | Screw |
| Type: | Auto Reset |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04013614348778 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR550800R9300 Thermistor Motor Protection Relay
Brand: ABB
Part Number: 1SVR550800R9300
ABB Thermistor Motor Protection Relay, Auto Reset, 50 to 60 Hz Frequency, 110 to 130 VAC Coil, 1NO Contact Form, 4 A at 250 V Contact, DIN Rail Mounting, Screw Terminal, LED Display, IP20/IP50 Enclosure, -20 to 60 deg C, 22.5 mm W x 78.5 mm D x 78 mm H Dimensions
Additional Description: ABB -1SVR550800R9300 CM-MSE THERMISTOR PROTEC. 110V 1N/O
Catalog Description: The CM-MSE relay is from the CM thermistor motor protection relay range. This relay operates with a rated control supply voltage of 110-130 V AC and has a 1 n/o output contact rated at 250 V / 4 A. It features one sensor circuit for monitoring of PTC temperature sensors or bimetals. This relay offers automatic reset and works according to the closed-circuit principle. A sealable transparent cover for protection against unauthorized changes is available as accessory
1SVR550800R9300 Application
For monitor motor winding temperature to detect adverse operating conditions that could cause motor failure1SVR550800R9300 Item Features
- Heavy duty starting
- Monitor motor winding temperature to detect adverse operating conditions that could cause motor failure
- A sealable transparent cover for protection against unauthorized changes is available as accessory
- Insufficient cooling
- High ambient temperature
- Rapid cycling
- Single phase operation
- Breaking operation
- Unbalanced voltages
- It features one sensor circuit for monitoring of PTC temperature sensors or bimetals
- This relay offers automatic reset and works according to the closed circuit principle
1SVR550800R9300 Standards
BAA Compliant|CB Certified|CE Certified|CCC Certified|cUL Listed|EAC Certified|RMRS Certified|RoHS Compliant|UL Listed|RoHS 2011/65/EU|CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|CE CertifiedSKU #2346228Part Number #1SVR550800R9300UNSPSC39122331UPC04013614348778
Image provided may only be a representation of final product and may include optional equipment
