Part Number # 1SVR730100R3100
SKU # 2267407
1SVR730100R3100

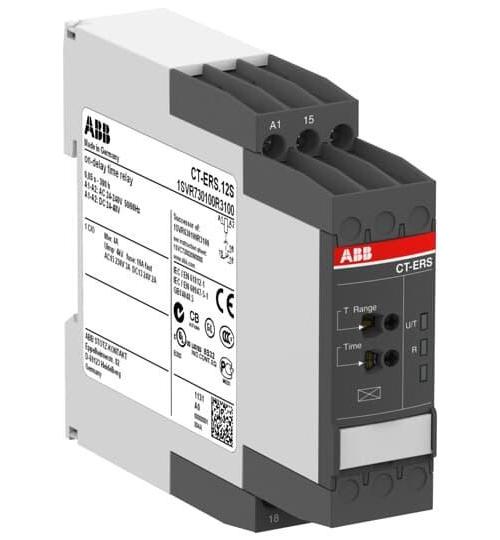

ABB 1SVR730100R3100 Time Relay
Part Number # 1SVR730100R3100
SKU # 2267407
$95.15 / Each
Typical price:$125.94 / Each
ABB 1SVR730100R3100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730100R3100 |
| SKU #: | 2267407 |
| Amperage Rating: | 2/3/4 A |
| Coil Voltage: | 24 to 240 V AC/24 to 48 V DC, 24 to 240 VAC/24 to 48 VDC |
| Contact Form: | 1CO SPDT, 1CO/SPDT |
| Dimensions: | 0.87 in W x 4.08 in D x 3.07 in H |
| Enclosure Type: | IP20/IP50, IP50/IP20 |
| Series: | CT-S |
| Time Setting: | 0.05 s to 300 hr |
| Type: | 1-Function |
| UNSPSC: | 39122329 |
| UPC: | 04016779851459 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$95.15 / Each
Typical price:$125.94 / Each
Quantity:
- ABB, 1SVR730100R3100, Electronic Timer Relay, 1-Function, Series: CT-S, Operation Mode: On-Delay, 24 to 240 V AC/24 to 48 V DC, 2/3/4 A, 1CO 1 Form C SPDT Contact Form, 0.05 s to 300 hr Time Setting, 24 to 240 V AC/24 to 48 V DC Coil, 20 ms Pulse, LED Display, Screw Terminal Electrical Connections, IP20/IP50 Enclosure, -25 to 60 deg C, DIN Rail Mounting, 0.87 in W x 4.08 in D x 3.07 in H Dimensions
1SVR730100R3100 Application
For use in industrial and general timing applications1SVR730100R3100 Item Features
- 2 LEDs for the indication of operational states
- 10 time ranges (0.05 s to 300 hr)
- Double-chamber cage connection terminals
- Integrated marker label
- Sealable transparent cover
- Screw connection technology or Easy Connect technology available
- Time range preselection and fine adjustment
- Housing material for highest fire protection classification UL 94 V-0
- Tool-free mounting on DIN rail as well as demounting
- LEDs for status indication
- Precise adjustment by front-face operating controls
- Snap-On housing
1SVR730100R3100 Standards
BAA Compliant|CB Certified|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|UL Listed|UL 94 V-0 Flammability Rating|EN/IEC 61812-1|EMC 2014/30/EU|Low Voltage Directive 2014/35/EU|UL 508|CAN/CSA C22.2 No. 14|GL Listed|EAC Approved|CCC Certified|RMRS Certified|CE Certified|RCM Marked|UL ListedSKU #2267407Part Number #1SVR730100R3100UNSPSC39122329UPC04016779851459
Image provided may only be a representation of final product and may include optional equipment
