Part Number # 1SVR730120R3100
SKU # 2409990
Image Disclaimers Message
1SVR730120R3100

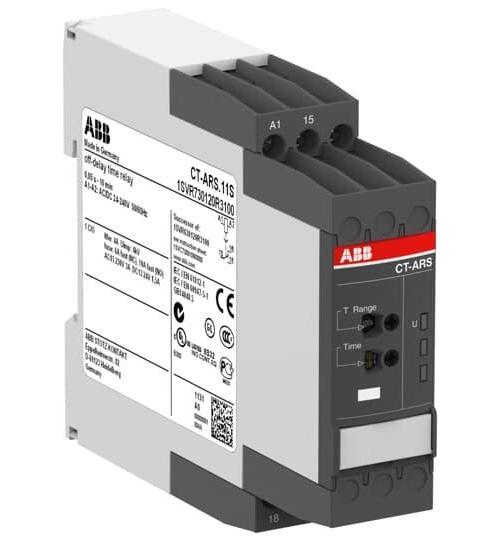

ABB 1SVR730120R3100 Type CT-ARS.11S OFF-Delayed High Performance Electronic Timer Relay
Part Number # 1SVR730120R3100
SKU # 2409990
$154.58 / Each
Typical price:$210.72 / Each
ABB 1SVR730120R3100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730120R3100 |
| SKU #: | 2409990 |
| Amperage Rating: | 1.5/3/4 A |
| Contact Form: | 1CO 1 Form C SPDT, 1CO/SPDT |
| Dimensions: | 3.37 in H x 0.89 in W x 4.08 in D |
| Display Type: | LED |
| Electrical Connections: | Screw Terminal |
| Enclosure Type: | IP20/IP50 |
| Operation Mode: | 1-Function |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Time Setting: | 0.05 s to 10 min |
| Type: | Type CT-ARS.11S OFF-Delayed High Performance |
| Country of origin: | DE |
| Mounting type: | Snap-On/DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122329 |
| UPC: | 04016779851480 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$154.58 / Each
Typical price:$210.72 / Each
Quantity:
- ABB, 1SVR730120R3100, Electronic Timer Relay, Type CT-ARS.11S OFF-Delayed High Performance, Operation Mode: 1-Function, 24 to 240 VAC/VDC, 1.5/3/4 A, 1CO 1 Form C SPDT Contact Form, 0.05 s to 10 min Time Setting, 20 ms Pulse, LED Display, Screw Terminal Electrical Connections, IP20/IP50 Enclosure, -25 to 60 deg C, Snap-On/DIN Rail Mounting, 3.37 in H x 0.89 in W x 4.08 in D Dimensions
1SVR730120R3100 Application
For use in industrial and general timing applications1SVR730120R3100 Item Features
- Precise adjustment by front-face operating controls
- Housing material for highest fire protection classification UL 94 V-0
- Tool-free mounting on DIN rail as well as demounting
- 1 LED for the indication of operational states
- Without auxiliary voltage
- 7 time ranges (0.05 s to 10 min)
- Screw connection technology or Easy Connect technology available
1SVR730120R3100 Standards
RoHS Compliant|UL 94 V-0 Flammability Rating|EN/IEC 61812-1|EMC 2014/30/EU|RoHS 2011/65/EU|Low Voltage Directive 2014/35/EU|UL 508|CAN/CSA C22.2 No. 14|EAC Approved|RMRS Certified|C-Tick Certified|EN 50581|cULus ListedSKU #2409990Part Number #1SVR730120R3100UNSPSC39122329UPC04016779851480
