ABB 1SVR730120R3300

Brand: ABB

Part Number: 1SVR730120R3300

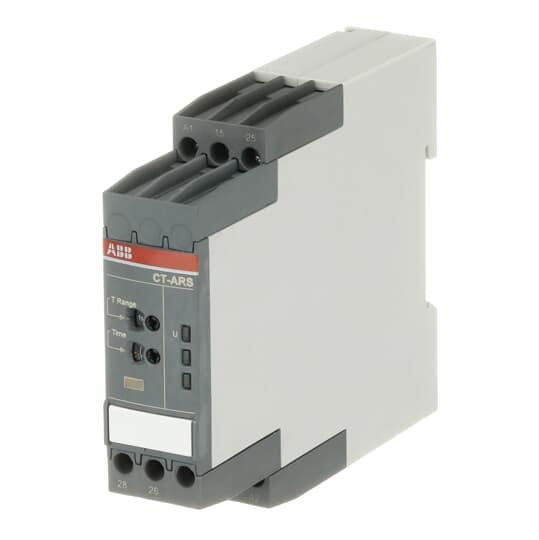

ABB Electronic Timer Relay, Type CT-ARS.21S OFF-Delayed High Performance, Operation Mode: 1-Function, 24 to 240 VAC/VDC, 1.5/3/4 A, 2CO-SPDT Contact Form, 0.05 s to 10 min Time Setting, 20 ms Pulse, LED Display, Terminal Screw Electrical Connections, IP20/IP50 Enclosure, -25 to 60 deg C, Snap-On/DIN Rail Mounting, 3.37 in H x 0.89 in W x 4.08 in D Dimensions

Additional Description: ABB -1SVR730120R3300 CT-ARS.21S TIME RELAY TRUE OFF-DEL.

Catalog Description: The CT-ARS.21S is a single-function electronic time relay from the CT-S timer range. It provides an OFF-delay (true delay on break) function without auxiliary voltage and with 10 time ranges from 0.05 s to 300 h. This time relay operates with a rated control supply voltage of 24 - 240 V AC / DC and has a 2 c/o (SPDT) output with contacts rated at 250 V / 4 A. A sealable transparent cover for protection against unauthorized changes is available as accessory. The device offers screw connection technology with double-chamber cage connection terminals.
