Part Number # 1SVR730712R1400
SKU # 2312875
Image Disclaimers Message
1SVR730712R1400

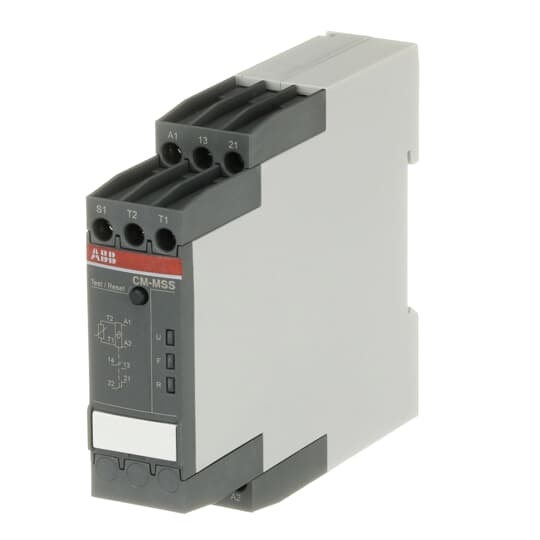

ABB 1SVR730712R1400 Thermistor Motor Protection Relay
Part Number # 1SVR730712R1400
SKU # 2312875
$242.48 / Each
Typical price:$330.54 / Each
ABB 1SVR730712R1400 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730712R1400 |
| SKU #: | 2312875 |
| Contact Form: | 1CO 1 Form C SPDT, 1NO-1NC SPDT |
| Contact Rating: | 4 A at 250 V |
| Dimensions: | 103.7 mm L x 22.5 mm W x 85.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50 |
| Frequency Rating: | 15 to 400 Hz |
| Temperature Rating (Degrees F): | -25 to 60 deg C |
| Terminal Type: | Screw |
| Mounting type: | DIN Rail/Snap-On |
| Manufacturer Name: | ABB |
| UNSPSC: | 32121610 |
| UPC: | 04013614496653 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$242.48 / Each
Typical price:$330.54 / Each
Quantity:
- ABB Thermistor Motor Protection Relay, 0.55 to 1.5 VA Power, 15 to 400 Hz Frequency, 1CO 1 Form C SPDT Contact Form, 4 A at 250 V Contact, DIN Rail/Snap-On Mounting, Screw Terminal, LED Display, IP20/IP50 Enclosure, -25 to 60 deg C, 103.7 mm L x 22.5 mm W x 85.6 mm H Dimensions
1SVR730712R1400 Item Features
- One sensor circuit
- Short circuit monitoring of the sensor circuit
- Non-volatile fault storage
- Dynamic interrupted wire detection
- Auto, manual or remote reset configurable
- LEDs to distinguish between different failure causes
- Overvoltage protected supply and measuring inputs
- Housing material for highest fire protection classification UL 94 V-0
- Tool-free mounting on DIN rail as well as demounting
1SVR730712R1400 Standards
ATEX Directive 94/9/EC|CAN/CSA C22.2 File No. 14|EN 50495/50581|IEC/EN 60079-7/60947-5-1/60947-8|RoHS EU Directive 2011/65/EU|UL 508/94 V-0SKU #2312875Part Number #1SVR730712R1400UNSPSC32121610UPC04013614496653
