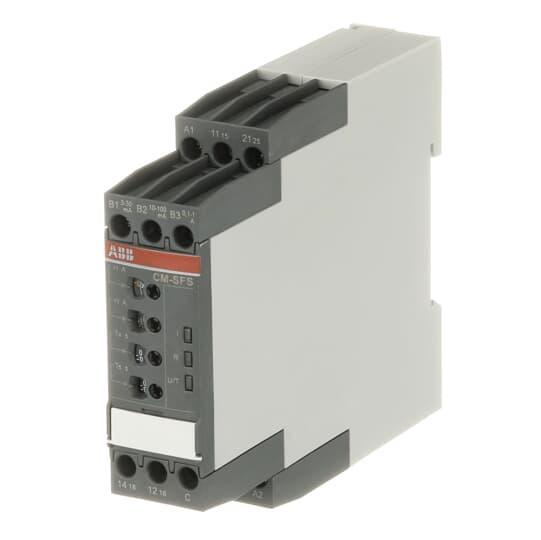

ABB 1SVR730760R0400 Current Monitoring Relay

2277938 MFG #: 1SVR730760R0400
$276.42 / EA
Out of Stock
ABB 1SVR730760R0400 Current Monitoring Relay
  • Amperage Rating: 3 mA to 1 A
  • Contact Configuration: 2CO-SPDT
  • Dimensions: 0.87 in W x 4.08 in D x 3.07 in H
  • Display Type: LED
  • Enclosure Type: IP50/IP20
  • Frequency Rating: 50/60
  • Series: CM Series
  • Terminal Type: Screw
  • Trip Delay: 0/0.1 to 30
  • Voltage Rating: 24 to 240
  • Contact material: AgNi
  • Mounting type: DIN Rail

ABB 1SVR730760R0400 Current Monitoring Relay

ABB Current Monitoring Relay, Series: CM Series, 24 to 240 VAC/VDC, 3 mA to 1 A, 50/60 Hz Frequency, AgNi Contact, 2CO-SPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, 0/0.1 to 30 s Trip Delay, IP20/IP50 Enclosure, 0.87 in W x 4.08 in D x 3.07 in H Dimensions

Additional Description: ABB -1SVR730760R0400 CM-SFS.21S CURRENT MON. RELAY

Catalog Description: Window current monitoring relay, single phase with 24-240V AC/DC, sensitivity from 3 milliamps to 1 amp sensing range, and trip delay to 30 secs.

QTY
Add to List
  • Specifications
  • TRMS measuring principle
  • 4 A at 230 VAC rated operational current AC-12
  • 2 A at 24 VDC rated operational current DC-13
  • 3 A at 230 VAC rated operational current AC-15
  • Suitable for railway applications
  • Over and undercurrent monitoring
  • ON or OFF-delay configurable
  • Open or closed-circuit principle configurable
  • Threshold values for >U and/or
  • Latching function configurable
  • Fixed hysteresis of 5 %
  • 3 LED's for the indication of operational states
  • 4 A at 24 VDC rated operational current DC-12
