Brand: ABB
1SVR730830R0300

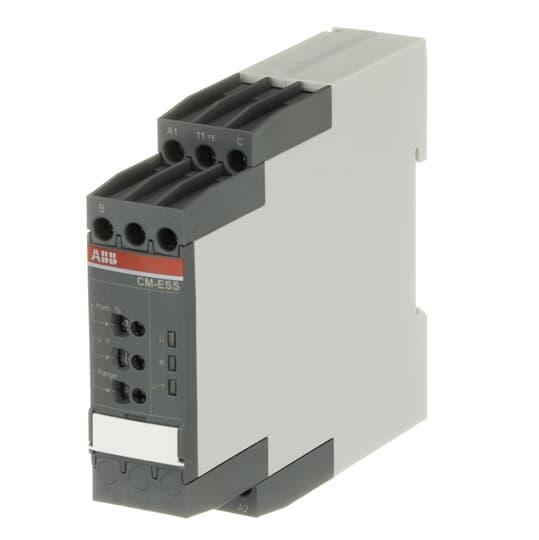

ABB 1SVR730830R0300 Voltage Monitoring Relay
Part Number # 1SVR730830R0300
SKU # 2306356
$268.07 / Each
Typical price:$365.44 / Each
ABB 1SVR730830R0300 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730830R0300 |
| SKU #: | 2306356 |
| Amperage Rating: | 11/30/17 mA |
| Contact Configuration: | 1CO SPDT, 1CO/SPDT |
| Dimensions: | 22.5 mm W x 103.7 mm D x 85.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50 |
| Frequency Rating: | 50/60 Hz |
| Series: | CM Series |
| Terminal Type: | Screw |
| Type: | 1-Phase |
| Contact material: | AgNi |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04016779852159 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$268.07 / Each
Typical price:$365.44 / Each
Quantity:
- ABB, 1SVR730830R0300, Voltage Monitoring Relay, 1-Phase, Series: CM Series, 24 to 240 V AC/DC, 11/30/17 mA, 50/60 Hz Frequency, AgNi Contact, 1CO SPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, IP20/IP50 Enclosure, 22.5 mm W x 103.7 mm D x 85.6 mm H Dimensions
1SVR730830R0300 Application
For over or undervoltage monitoring in single-phase AC and DC systems1SVR730830R0300 Item Features
- Monitoring of DC and AC voltages from 3 to 600 V
- Current/power consumption: 30 mA/0.75 W at 24 VDC, 17 mA/1.9 VA at 115 VAC and 11 mA/2.6 VA at 230 VAC
- Suitable for railway applications
- Hysteresis adjustable from 3 to 30%
- 3 LEDs for the indication of operational states
- Latching function configurable
- Threshold values for >U and/or
- Over or undercurrent monitoring configurable
- 3 supply voltage versions
- TRMS measuring principle
- Fixed hysteresis of 5 %
- 4 A at 230 VAC rated operational current AC-12
- ON or OFF-delay configurable
- Without trip delay
- Open or closed-circuit principle configurable
- One device includes 4 measuring ranges
1SVR730830R0300 Standards
BAA Compliant|CB Certified|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|RoHS Compliant|RoHS Compliant|CAN/CSA C22.2 File No 14|UL 508|EAC Certified|CE Certified|GOST Certified|CB Certified|CCC CertifiedSKU #2306356Part Number #1SVR730830R0300UNSPSC39122331UPC04016779852159
