Part Number # 1SVR730840R0300
SKU # 2349301
Image Disclaimers Message
1SVR730840R0300

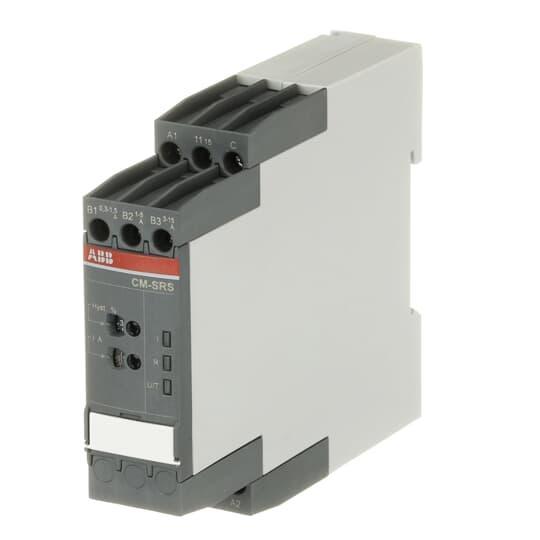

ABB 1SVR730840R0300 Current Monitoring Relay
Part Number # 1SVR730840R0300
SKU # 2349301
$268.07 / Each
Typical price:$365.44 / Each
ABB 1SVR730840R0300 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730840R0300 |
| SKU #: | 2349301 |
| Amperage Rating: | 0.3 to 15, 0.3 to 15 A |
| Contact Configuration: | 1CO SPDT, 1CO/SPDT |
| Dimensions: | 22.5 mm W x 103.7 mm D x 85.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50, IP50/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CM Series |
| Terminal Type: | Screw |
| Type: | 1-Function |
| Contact material: | AgNi |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04016779852234 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$268.07 / Each
Typical price:$365.44 / Each
Quantity:
- ABB, 1SVR730840R0300, Current Monitoring Relay, 1-Function, Series: CM Series, 24 to 240 V AC/DC, 0.3 to 15 A, 50/60 Hz Frequency, AgNi Contact, 1CO SPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, IP20/IP50 Enclosure, 22.5 mm W x 103.7 mm D x 85.6 mm H Dimensions
1SVR730840R0300 Application
For single-phase AC/DC current monitoring1SVR730840R0300 Item Features
- Suitable for railway applications
- Hysteresis adjustable from 3 to 30%
- 3 LEDs for the indication of operational states
- Latching function configurable
- Threshold values for >U and/or
- Over or undercurrent monitoring configurable
- Screw terminal connection
- TRMS measuring principle
- Fixed hysteresis of 5 %
- 4 A at 230 VAC rated operational current AC-12
- ON or OFF-delay configurable
- Monitoring of DC and AC currents from 3 mA to 15 A
- Open or closed-circuit principle configurable
- One device includes 3 measuring ranges
1SVR730840R0300 Standards
BAA Compliant|CB Certified|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|RoHS Compliant|RoHS Compliant|UL 508|CAN/CSA C22.2 File No 14|GOST Certified|CCC Certified|CE CertifiedSKU #2349301Part Number #1SVR730840R0300UNSPSC39122331UPC04016779852234
