Part Number # 1SVR730840R0400
SKU # 2277939
Image Disclaimers Message
1SVR730840R0400

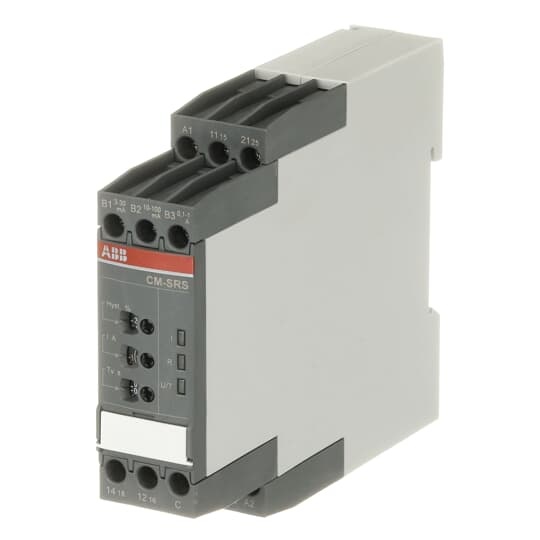

ABB 1SVR730840R0400 Current Monitoring Relay
Part Number # 1SVR730840R0400
SKU # 2277939
$292.27 / Each
Typical price:$398.41 / Each
ABB 1SVR730840R0400 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730840R0400 |
| SKU #: | 2277939 |
| Amperage Rating: | 0.003 to 1, 0.003 to 1 A |
| Contact Configuration: | 2CO SPDT, 2CO-SPDT, 2CO/SPDT |
| Dimensions: | 103.7 mm L x 22.5 mm W x 85.6 mm H |
| Enclosure Type: | IP20/IP50 |
| Terminal Type: | Screw |
| Trip Delay: | 0/0.1 to 30, 0/0.1 to 30 s |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04016779852241 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$292.27 / Each
Typical price:$398.41 / Each
Quantity:
- ABB, 1SVR730840R0400, Current Monitoring Relay, 24 to 240 V AC/DC, 0.003 to 1 A, 2CO SPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, 0/0.1 to 30 s Trip Delay, IP20/IP50 Enclosure, 103.7 mm L x 22.5 mm W x 85.6 mm H Dimensions
1SVR730840R0400 Application
For 1-phase voltage monitoring applications1SVR730840R0400 Item Features
- Selectable 0.003 to 1 A sensing range
- 0.6 to 0.8 N-m tightening torque
- Selectable over or undercurrent monitoring
- 8 mm L wire stripping
- -45 to 85 deg C storage temperature
1SVR730840R0400 Standards
RoHS 2011/65/EU|CB Certified|CCC Certified|cULus 508 20120203-E140448|CE Certified|DNV GL Certified|EAC Certified|RMRS Approved|UL/cULus Listed|CSA Certified|EAC Approved|RoHS Compliant|IEC/EN 60255-1|IEC/EN 60255-27|EN 50178SKU #2277939Part Number #1SVR730840R0400UNSPSC39122331UPC04016779852241
