1SVR730840R0500

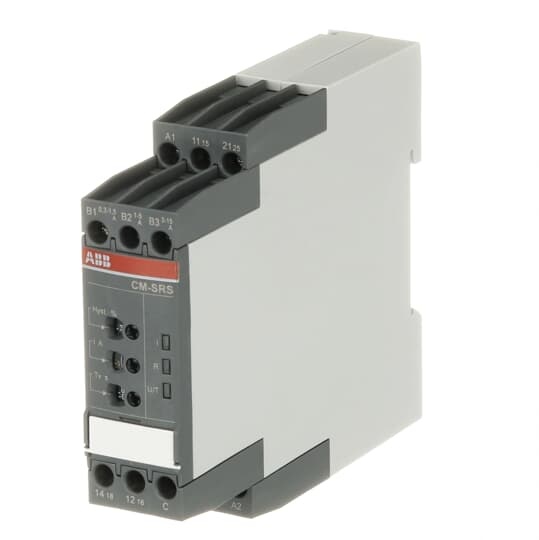

ABB 1SVR730840R0500 Current Monitoring Relay
Part Number # 1SVR730840R0500
SKU # 2263154
ABB 1SVR730840R0500 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730840R0500 |
| SKU #: | 2263154 |
| Amperage Rating: | 0.3 to 15, 0.3 to 15 A |
| Contact Configuration: | 2CO-SPDT |
| Dimensions: | 22.5 mm W x 103.7 mm D x 85.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50, IP50/IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CM Series |
| Terminal Type: | Screw |
| Trip Delay: | 0/0.1 to 30, 0/0.1 to 30 s |
| Type: | 1-Function |
| Contact material: | AgNi |
| Mounting type: | DIN Rail |
| UNSPSC: | 39122331 |
| UPC: | 04016779852258 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR730840R0500 Current Monitoring Relay
Brand: ABB
Part Number: 1SVR730840R0500
ABB Current Monitoring Relay, 1-Function, Series: CM Series, 24 to 240 VAC/VDC, 0.3 to 15 A, 50/60 Hz Frequency, AgNi Contact, 2CO-SPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, 0/0.1 to 30 s Trip Delay, IP20/IP50 Enclosure, 22.5 mm W x 103.7 mm D x 85.6 mm H Dimensions
Additional Description: ABB -1SVR730840R0500 CM-SRS.22S CURRENT MON. RELAY
Catalog Description: Current monitoring relay with 24-240V AC/DC supply voltage and selectable 0.3-15 amps sensing range, with adjustable 0 or 0.1-30 s trip delay
1SVR730840R0500 Item Features
- TRMS measuring principle
- Over and undercurrent monitoring
- ON or OFF-delay configurable
- Open or closed-circuit principle configurable
- Threshold values for >U and/or
- Latching function configurable
- Fixed hysteresis of 5 %
- 3 LEDs for the indication of operational states
- 4 A at 24 VDC rated operational current DC-12
- 4 A at 230 VAC rated operational current AC-12
- 2 A at 24 VDC rated operational current DC-13
- 3 A at 230 VAC rated operational current AC-15
- Suitable for railway applications
