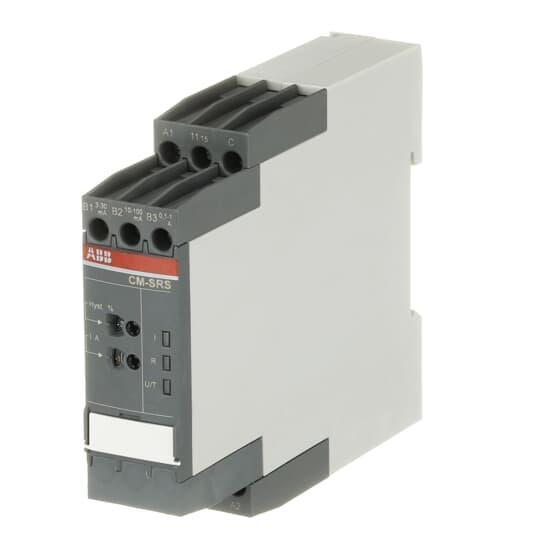

ABB 1SVR730841R0200 Current Monitoring Relay

2319754 MFG #: 1SVR730841R0200
$159.15 / EA
Usually Ships within 5-8 Days
  • Amperage Rating: 0.003 to 1
  • Contact Configuration: 1CO SPDT
  • Dimensions: 22.5 mm W x 103.7 mm D x 85.6 mm H
  • Display Type: LED
  • Enclosure Type: IP50/IP20
  • Frequency Rating: 50/60
  • Series: CM Series
  • Terminal Type: Screw
  • Voltage Rating: 110 to 130
  • Contact material: AgNi
  • Mounting type: DIN Rail

ABB 1SVR730841R0200 Current Monitoring Relay

ABB Current Monitoring Relay, Series: CM Series, 110 to 130 VAC, 0.003 to 1 A, 50/60 Hz Frequency, AgNi Contact, 1CO-SPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, IP20/IP50 Enclosure, 22.5 mm W x 103.7 mm D x 85.6 mm H Dimensions

Additional Description: ABB -1SVR730841R0200 CM-SRS.11S CURRENT MON. RELAY NON-CANCELABLE, NON-RETURNABLE

Catalog Description: Current monitoring relay with 110-130 VAC supply voltage and selectable 0.003-1 amp sensing range, no trip delay

  • Specifications
  • TRMS measuring principle
  • 4 A at 230 VAC rated operational current AC-12
  • 2 A at 24 VDC rated operational current DC-13
  • 3 A at 230 VAC rated operational current AC-15
  • Suitable for railway applications
  • Over and undercurrent monitoring
  • ON or OFF-delay configurable
  • Open or closed-circuit principle configurable
  • Threshold values for >U and/or
  • Latching function configurable
  • Fixed hysteresis of 5 %
  • 3 LED's for the indication of operational states
  • 4 A at 24 VDC rated operational current DC-12
