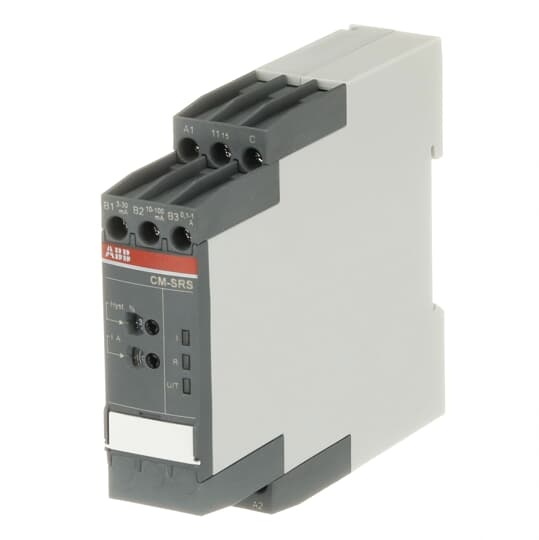

ABB 1SVR730841R0300 Current Monitoring Relay
Part Number # 1SVR730841R0300
SKU # 2279265
$225.28 / Each
ABB 1SVR730841R0300 Key Features
Brand: ABB
Part Number # 1SVR730841R0300
SKU #2279265
Amperage Rating: 0.3 to 15, 0.3 to 15 A
Contact Configuration: 1CO SPDT, 1CO/SPDT
Dimensions: 22.5 mm W x 103.7 mm D x 85.6 mm H
Display Type: LED
Enclosure Type: IP20/IP50, IP50/IP20
Frequency Rating: 50/60, 50/60 Hz
Series: CM Series
Terminal Type: Screw
Voltage Rating: 110 to 130, 110 to 130 VAC
Contact material: AgNi
Mounting type: DIN Rail
UNSPSC: 39122331
UPC: 04016779852296
$225.28 / Each
ABB 1SVR730841R0300 Current Monitoring Relay
ABB Current Monitoring Relay, Series: CM Series, 110 to 130 VAC, 0.3 to 15 A, 50/60 Hz Frequency, AgNi Contact, 1CO/SPDT Contact Configuration, DIN Rail Mounting, Screw Terminal, LED Display, IP20/IP50 Enclosure, 22.5 mm W x 103.7 mm D x 85.6 mm H Dimensions
Additional Description: ABB -1SVR730841R0300 (N) CM-SRS.12S CURRENT MON. RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Current monitoring relay with 110-130 VAC supply voltage and selectable 0.3-15 amps sensing range, no trip delay
1SVR730841R0300 Item Features
- TRMS measuring principle
- Over and undercurrent monitoring
- ON or OFF-delay configurable
- Open or closed-circuit principle configurable
- Threshold values for >U and/or
- Latching function configurable
- Fixed hysteresis of 5 %
- 3 LEDs for the indication of operational states
- 4 A at 24 VDC rated operational current DC-12
- 4 A at 230 VAC rated operational current AC-12
- 2 A at 24 VDC rated operational current DC-13
- 3 A at 230 VAC rated operational current AC-15
- Suitable for railway applications
