1SVR730884R3300
ABB 1SVR730884R3300
Part Number # 1SVR730884R3300
SKU # 2435649
ABB 1SVR730884R3300 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR730884R3300 |
| SKU #: | 2435649 |
| Amperage Rating: | 2 to 4 A |
| Coil Current: | 4 A at 230 VAC |
| Coil Voltage: | 300 to 500 V AC |
| Contact Configuration: | 2CO SPDT |
| Dimensions: | 22.5 mm W x 103.7 mm D x 85.6 mm H |
| Enclosure Type: | IP20/IP50 |
| Response Time: | 0/0.1 to 30 s Tripping/200 ms Startup Delay |
| Series: | CM-S |
| Type: | Universal 3-Phase Multi-Function |
| Contact material: | AgNi |
| UNSPSC: | 39122332 |
| UPC: | 04016779851862 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR730884R3300
Brand: ABB
Part Number: 1SVR730884R3300
ABB Monitoring Relay, Universal 3-Phase Multi-Function, Series: CM-S, 50/60 Hz, 300 to 500 VAC Coil, 4 A at 230 VAC Coil, AgNi Contact, 2CO-SPDT, DIN Rail Mount, Screw Terminal, LED, IP50/IP20 Enclosure, 22.5 mm W x 103.7 mm D x 85.6 mm H
Additional Description: ABB -1SVR730884R3300 CM-MPS.41S THREE-PHASE MON.
Catalog Description: Multifunction three phase monitoring relay, operating on 300-500 VAC, with selectable trip delay, and monitoring: phase loss, phase sequence, overvoltage, undervoltage and phase unbalance, without neutral connection
1SVR730884R3300 Application
For protection of sensitive three phase loads, protection against phase unbalance, phase loss and phase reversal, overvoltage and undervoltage1SVR730884R3300 Item Features
- Protects against - phase unbalance, phase loss and phase reversal, overvoltage and under voltage
- LEDs for the indication of operational states
- Phase sequence monitoring
- Suitable for railway applications
- Over and under voltage monitoring
- Dual frequency measuring 50/60 Hz
- Wide-range operating voltage guarantees world-wide operation
- Powered by the measuring circuit
- Adjustable phase unbalance threshold value
- 3 A at 230 VAC rated operational current AC-15
- Adjustable ON-delay/OFF-delay time
- Without neutral connection
- Phase failure detection
1SVR730884R3300 Standards
BAA Compliant|CE Certified|CB Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 60255-27, 61000-6-2, 61000-6-3|UL 508|CB Certified|CCC Certified|cULus 508 20120829-E140448|CE Certified|DNV GL Certified|EAC Certified|RMRS ApprovedSKU #2435649Part Number #1SVR730884R3300UNSPSC39122332UPC04016779851862

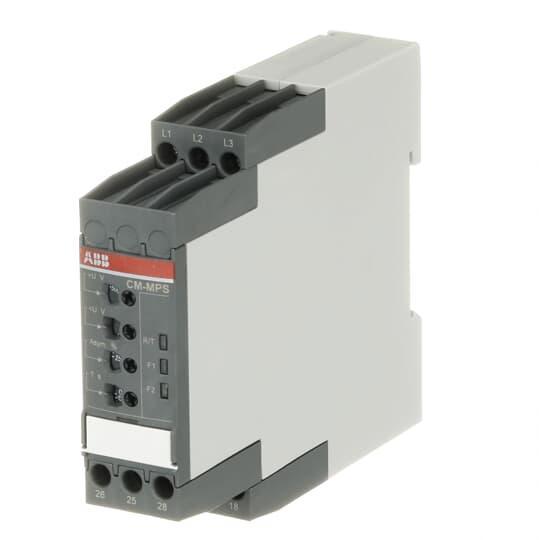

Image provided may only be a representation of final product and may include optional equipment
