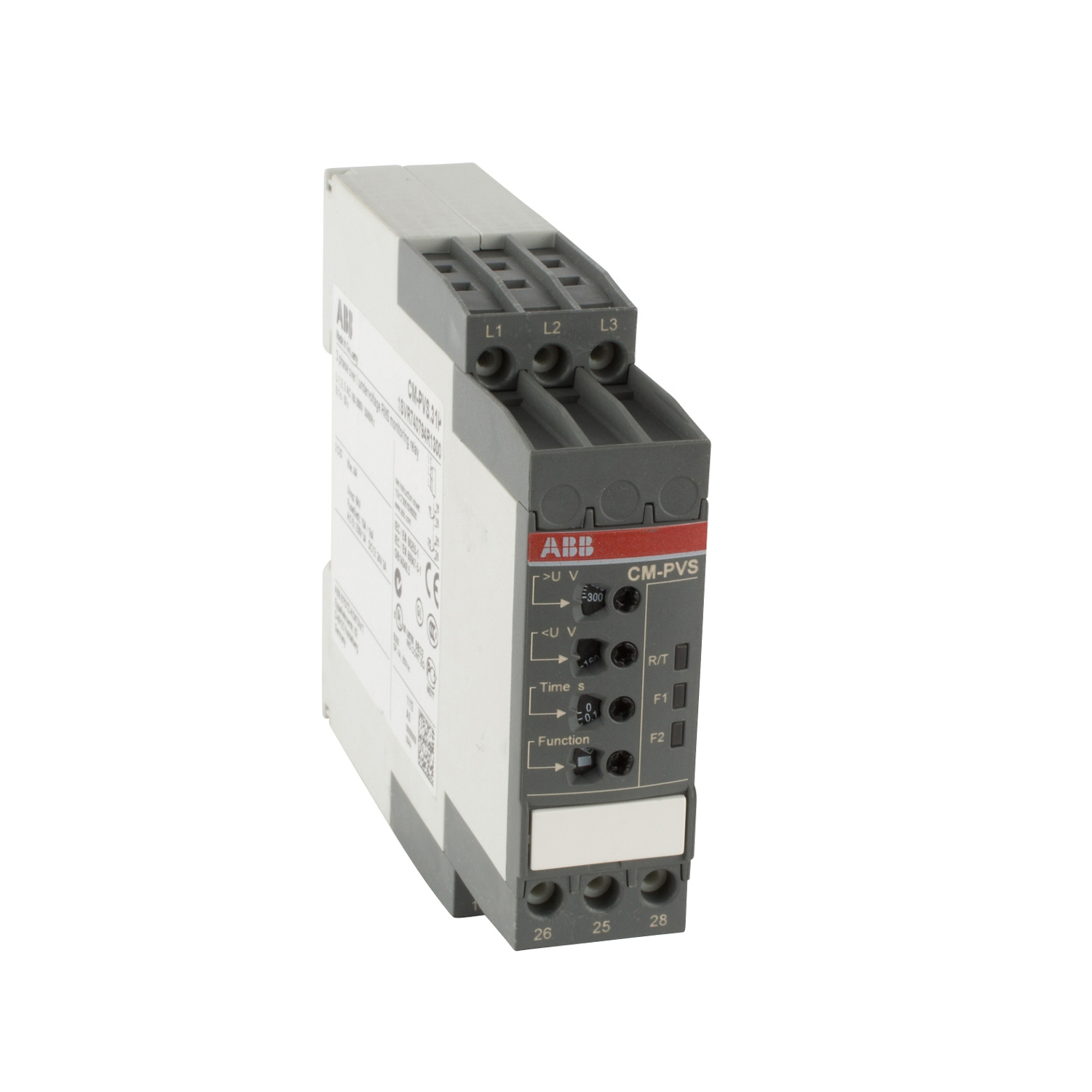

ABB 1SVR740794R1300 3-Phase Monitoring Relay
Part Number # 1SVR740794R1300
SKU # 2425471
ABB 1SVR740794R1300 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR740794R1300 |
| SKU #: | 2425471 |
| Amperage Rating: | 2 to 4 A |
| Coil Voltage: | 160 to 300 V AC, 160 to 300 VAC |
| Contact Configuration: | 2CO SPDT, 2CO-SPDT |
| Dimensions: | 4.08 in L x 0.87 in W x 3.07 in H |
| Enclosure Type: | IP20/IP50 |
| Frequency Rating: | 50/60 Hz |
| Response Time: | 0/0.1 to 30 s Tripping/200 ms Startup Delay |
| Terminal Type: | Screwless |
| Type: | 3-Phase |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122332 |
| UPC: | 04016779852012 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR740794R1300 3-Phase Monitoring Relay
Brand: ABB
Part Number: 1SVR740794R1300
ABB Monitoring Relay, 3-Phase, 160 to 300 VAC, 2 to 4 A, 50/60 Hz Frequency, 160 to 300 VAC Coil, 2CO-SPDT Contact Configuration, DIN Rail Mounting, Screwless Terminal, 0/0.1 to 30 s Tripping/200 ms Startup Delay Response, IP20/IP50 Enclosure, 4.08 in L x 0.87 in W x 3.07 in H Dimensions
Additional Description: ABB -1SVR740794R1300 (N) CM-PVS.31P THREE-PHASE MON. NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Over and undervoltage monitor for 3 phase mains from 160 to 300 VAC, with DPDT relay output and 0.1 to 30 sec. time delay
1SVR740794R1300 Application
For 3-phase applications where over and undervoltage are monitored1SVR740794R1300 Item Features
- Selectable ON/OFF delay
1SVR740794R1300 Standards
CAN/CSA C22.2 No. 14|EN 50581|IEC/EN 60255-27, 61000-6-2, 61000-6-3|UL 508|CCC Certified|cULus 508 20120829-E140448|RMRS ApprovedSKU #2425471Part Number #1SVR740794R1300UNSPSC39122332UPC04016779852012
Image provided may only be a representation of final product and may include optional equipment
