Part Number # 1SVR740830R0400
SKU # 2328257
1SVR740830R0400
ABB 1SVR740830R0400 Voltage Monitoring Relay
Part Number # 1SVR740830R0400
SKU # 2328257
ABB 1SVR740830R0400 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR740830R0400 |
| SKU #: | 2328257 |
| Amperage Rating: | 4 A |
| Contact Configuration: | 2CO SPDT, 2CO-SPDT |
| Dimensions: | 0.87 in W x 4.08 in D x 3.07 in H |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50, IP50/20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CM Series |
| Terminal Type: | Screwless |
| Trip Delay: | 0/0.1 to 30, 0/0.1 to 30 s |
| Type: | 1-Phase |
| Contact material: | AgNi |
| Country of origin: | US |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04016779852401 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 1SVR740830R0400 Voltage Monitoring Relay
Brand: ABB
Part Number: 1SVR740830R0400
ABB Voltage Monitoring Relay, Series: CM Series, 24 to 240 VAC/VDC, 50/60 Hz Frequency, AgNi Contact, 2CO-SPDT Contact Configuration, DIN Rail Mounting, Screwless Terminal, LED Display, 0/0.1 to 30 s Trip Delay, IP20/IP50 Enclosure, 0.87 in W x 4.08 in D x 3.07 in H Dimensions
Additional Description: ABB -1SVR740830R0400 (N) CM-ESS.2P VOLTAGE MON. RELAY NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Voltage monitoring relay, single phase with 24-240V AC/DC control voltage, selectable sensitivity from 3-600V, and 0.1 to 30 sec. trip delay
1SVR740830R0400 Application
For DC motor speed control, battery monitoring, monitoring of AC or DC supplies and monitoring of heating or lighting circuits1SVR740830R0400 Item Features
- Suitable for railway applications
- 3 LEDs for the indication of operational states
- Tool-free mounting on DIN rail as well as demounting
- Latching function configurable
- Over and undercurrent monitoring
- Threshold values for >U and/or
- Hysteresis adjustable (3 to 30%)
- 3 supply voltage versions
- Selectable over or undervoltage monitoring
- TRMS measuring principle
- Fixed hysteresis of 5 %
- 4 A at 230 VAC rated operational current AC-12
- ON or OFF-delay configurable
- Open or closed-circuit principle configurable
- Monitoring of DC and AC voltages (3 to 600 V)
- Precise adjustment by front face operating controls
- One device includes 4 measuring ranges
1SVR740830R0400 Standards
BAA Compliant|CB Certified|CE Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|UL Listed|CAN/CSA C22.2 No. 14|EN 50178|EN 50581|EN 50155|EN 45545-2|IEC 60571|IEC/EN 60255-27|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|cULus Listed|EAC Certified|CCC Certified|RMRS Approved|CE Certified|RCM Certified|UL 94 V-0 Flammability Rating|NF F 16-101/102SKU #2328257Part Number #1SVR740830R0400UNSPSC39122331UPC04016779852401

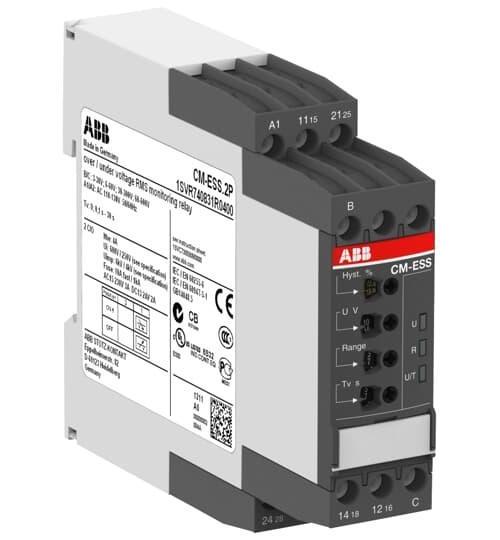

Image provided may only be a representation of final product and may include optional equipment
