Part Number # 1SVR740831R0400
SKU # 2318780
Image Disclaimers Message
1SVR740831R0400

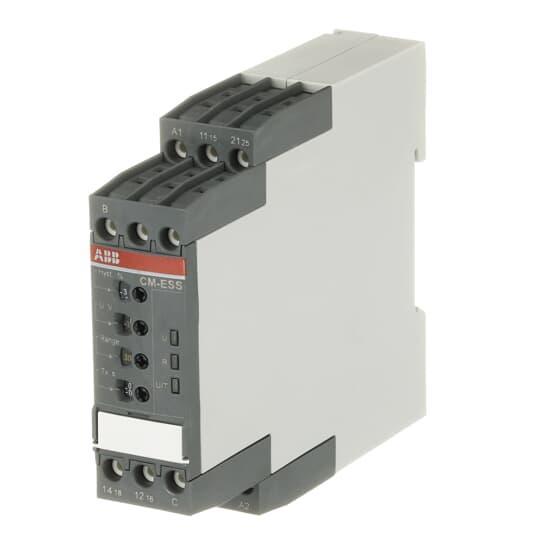

ABB 1SVR740831R0400 Voltage Monitoring Relay
Part Number # 1SVR740831R0400
SKU # 2318780
$256.96 / Each
Typical price:$350.27 / Each
ABB 1SVR740831R0400 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 1SVR740831R0400 |
| SKU #: | 2318780 |
| Contact Configuration: | 2CO SPDT, 2CO-SPDT |
| Dimensions: | 22.5 mm W x 103.7 mm D x 85.6 mm H |
| Display Type: | LED |
| Enclosure Type: | IP20/IP50, IP50/20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Series: | CM Series |
| Terminal Type: | Screwless |
| Trip Delay: | 0/0.1 to 30, 0/0.1 to 30 s |
| Type: | 1-Phase |
| Contact material: | AgNi |
| Country of origin: | DE |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122331 |
| UPC: | 04016779852432 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$256.96 / Each
Typical price:$350.27 / Each
Quantity:
- ABB, 1SVR740831R0400, Voltage Monitoring Relay, 1-Phase, Series: CM Series, 110 to 130 V AC, 50/60 Hz Frequency, AgNi Contact, 2CO SPDT Contact Configuration, DIN Rail Mounting, Screwless Terminal, LED Display, 0/0.1 to 30 s Trip Delay, IP20/IP50 Enclosure, 22.5 mm W x 103.7 mm D x 85.6 mm H Dimensions
1SVR740831R0400 Application
For DC motor speed control, battery monitoring, monitoring of AC or DC supplies and monitoring of heating or lighting circuits1SVR740831R0400 Item Features
- Suitable for railway applications
- 3 LEDs for the indication of operational states
- Tool-free mounting on DIN rail as well as demounting
- Latching function configurable
- Threshold values for >U and/or
- Hysteresis adjustable (3 to 30%)
- 3 supply voltage versions
- TRMS measuring principle
- Fixed hysteresis of 5 %
- 4 A at 230 VAC rated operational current AC-12
- ON or OFF-delay configurable
- Open or closed-circuit principle configurable
- Monitoring of DC and AC voltages (3 to 600 V)
- Precise adjustment by front face operating controls
- Over and undervoltage monitoring
- One device includes 4 measuring ranges
1SVR740831R0400 Standards
CE Certified|CB Certified|CCC Certified|cULus Listed|DNV GL Certified|EAC Certified|RMRS Certified|CAN/CSA C22.2 No. 14|EN 50178|EN 50581|EN 50155|EN 45545-2|IEC 60571|IEC/EN 60255-27|IEC/EN 61000-6-2|IEC/EN 61000-6-3|UL 508|cULus Listed|EAC Certified|CCC Certified|RMRS Approved|CE Certified|RCM Certified|UL 94 V-0 Flammability Rating|NF F 16-101/102SKU #2318780Part Number #1SVR740831R0400UNSPSC39122331UPC04016779852432
