- Amperage Rating: 50
- Coil Voltage: 265 VAC, 350 VDC
- Contact Form: 3NO-1NC
- Contact Rating: 8
- Dimensions: 22.5 mm W x 120 mm D x 120 mm H
- Display Type: LED
- Enclosure Type: IP20
- Frequency Rating: 0.5
- Power Rating: 12
- Series: Sentry
- Temperature Rating (Degrees F): -10 to 55
- Terminal Type: Screw
- Type: 1-Function
- Mounting type: DIN Rail

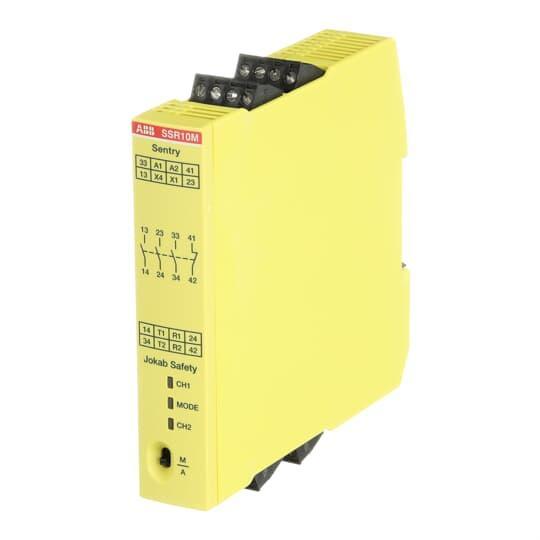

ABB 2TLA010050R0100 Safety Relay
ABB Safety Relay, 1-Function, Series: Sentry, 50 mA, 12 W Power, 0.5 Hz Frequency, 265 VAC, 350 VDC Coil, 3NO-1NC Contact Form, 8 A Contact, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -10 to 55 deg C, 22.5 mm W x 120 mm D x 120 mm H Dimensions
Additional Description: ABB -2TLA010050R0100 SENTRY SSR10M 85-265 VAC/DC - 85
Catalog Description: SSR10M is a safety relay with relay outputs, 3 NO + 1 NC, and a 85-265 VAC (50/60 Hz)/120-375 VDC supply voltage. SSR10M is used with safety devices with contacts, 1 or 2 channels , and safety devices with OSSD outputs. The reset function, automatic or manual, is set with a switch on the front.
- Specifications
- Timer functions with an accuracy of +/-1%
- 5 A NC, 8 A NO contact rating
- No time delay
- Multi-reset
- Light-button function
- Configurable models with display
- Faster troubleshooting with display
- Switch for selection of the reset function
- Powerful outputs
- Delayed outputs
- Single function or universal model
