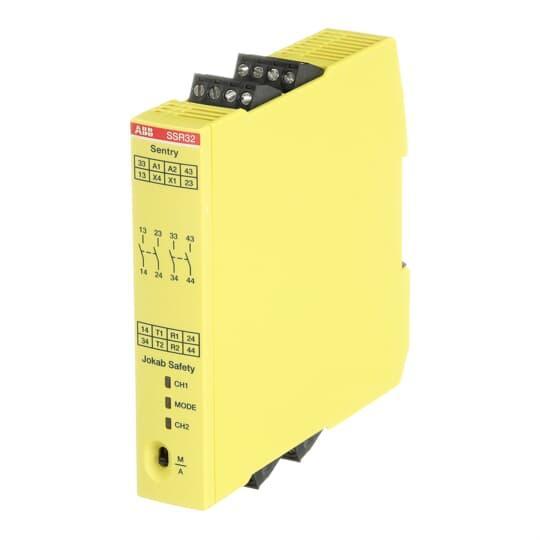

ABB 2TLA010052R0400 Safety Relay
Part Number # 2TLA010052R0400
SKU # 2367267
$362.79 / Each
ABB 2TLA010052R0400 Key Features
Brand: ABB
Part Number # 2TLA010052R0400
SKU #2367267
Amperage Rating: 50, 50 mA
Coil Voltage: 265 VAC, 350 VDC
Contact Form: 2NO-2NO
Contact Rating: 8, 8 A, 8:00 AM
Dimensions: 22.5 mm W x 120 mm D x 120 mm H
Display Type: LED
Enclosure Type: IP20
Frequency Rating: 0.5, 0.5 Hz
Power Rating: 6, 6 W
Series: Sentry
Temperature Rating (Degrees F): -10 to 65, -10 to 65 deg C
Terminal Type: Screw
Type: 1-Function
Mounting type: DIN Rail
UNSPSC: 39122331
UPC: 07350024483321
$362.79 / Each
ABB 2TLA010052R0400 Safety Relay
Brand: ABB
Part Number: 2TLA010052R0400
ABB Safety Relay, 1-Function, Series: Sentry, 50 mA, 6 W Power, 0.5 Hz Frequency, 265 VAC, 350 VDC Coil, 2NO-2NO Contact Form, 8 A Contact, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -10 to 65 deg C, 22.5 mm W x 120 mm D x 120 mm H Dimensions
Additional Description: ABB -2TLA010052R0400 SENTRY SSR32 24VDC 24 VOL
Catalog Description: Manual or automatic reset selectable by switch on front.he two delayed NO relay outputs have an OFF-delay time of 0,5 second.
2TLA010052R0400 Item Features
- Timer functions with an accuracy of +/-1%
- Multi-reset
- Light-button function
- Configurable models with display
- Faster troubleshooting with display
- Switch for selection of the reset function
- Powerful outputs
- Delayed outputs
- Single function or universal model
- 5 A NC, 8 A NO contact rating
SKU #2367267Part Number #2TLA010052R0400UNSPSC39122331UPC07350024483321
