Part Number # 2TLA010053R0400
SKU # 2359477
Image Disclaimers Message
Brand: ABB
2TLA010053R0400

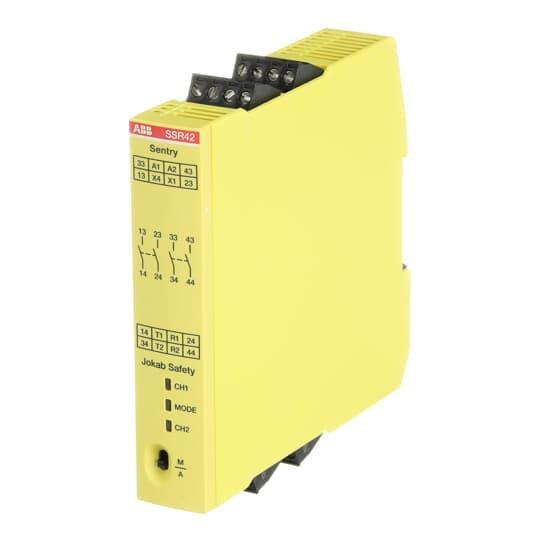

ABB 2TLA010053R0400 Safety Relay
Part Number # 2TLA010053R0400
SKU # 2359477
$330.14 / Each
ABB 2TLA010053R0400 Key Features
Brand: | ABB |
---|---|
Part Number # : | 2TLA010053R0400 |
SKU #: | 2359477 |
Amperage Rating: | 50, 50 mA |
Coil Voltage: | 265 VAC, 350 VDC |
Contact Form: | 2NO-2NO |
Contact Rating: | 8, 8 A, 8:00 AM |
Dimensions: | 22.5 mm W x 120 mm D x 120 mm H |
Display Type: | LED |
Enclosure Type: | IP20 |
Frequency Rating: | 0.5, 0.5 Hz |
Series: | Sentry |
Temperature Rating (Degrees F): | -10 to 65, -10 to 65 deg C |
Terminal Type: | Screw |
Type: | 1-Function |
Mounting type: | DIN Rail |
UNSPSC: | 39122331 |
UPC: | 07350024483338 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$330.14 / Each
Quantity:
ABB 2TLA010053R0400 Safety Relay
Brand: ABB
Part Number: 2TLA010053R0400
ABB Safety Relay, 1-Function, Series: Sentry, 50 mA, 6 W Power, 0.5 Hz Frequency, 265 VAC, 350 VDC Coil, 2NO-2NO Contact Form, 8 A Contact, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -10 to 65 deg C, 22.5 mm W x 120 mm D x 120 mm H Dimensions
Additional Description: ABB -2TLA010053R0400 SENTRY SSR42 24VDC 24 VOL
Catalog Description: The two delayed NO relay outputs have an OFF-delay time of 1,5 seconds.
2TLA010053R0400 Item Features
- Timer functions with an accuracy of +/-1%
- Multi-reset
- Light-button function
- Configurable models with display
- Faster troubleshooting with display
- Switch for selection of the reset function
- Powerful outputs
- Delayed outputs
- Single function or universal model
- 5 A NC, 8 A NO contact rating
SKU #2359477Part Number #2TLA010053R0400UNSPSC39122331UPC07350024483338
