ABB 2TLA010060R0000 Safety Relay
ABB 2TLA010060R0000 Safety Relay
ABB Safety Relay, Timer-Function, Series: Sentry, 50 mA, 4 W Power, 0.5 Hz Frequency, 265 VAC, 350 VDC Coil, 3NO-1NC Contact Form, 8 A Contact, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -10 to 65 deg C, 22.5 mm W x 120 mm D x 120 mm H Dimensions
Additional Description: ABB -2TLA010060R0000 SENTRY TSR10 24VDC 24VDC -

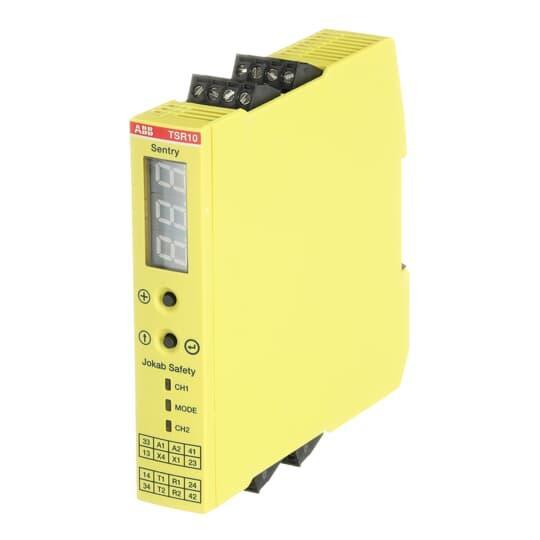

Catalog Description: TSR10 is a safety relay/safety timer with delayable relay outputs, 3 NO+ 1 NC, and a +24 VDC power supply. TSR10 offers 0-999 seconds timer functions with a better accuracy than 1 Percent: OFF-delay, ON-delay, Time bypass and Time reset.A display on its front facilitate configuration and troubleshooting by displaying error codes and error log. A custom configuration can be protected by password. Automatic reset function only.
- Specifications
- Timer functions with an accuracy of +/-1%
- 5 A at NC, 8 A at NO contact rating
- Multi-reset
- Light-button function
- Configurable models with display
- Faster troubleshooting with display
- Switch for selection of the reset function
- Powerful outputs
- Delayed outputs
- Single function or universal model
