- Amperage Rating: 50
- Coil Voltage: 265 VAC, 350 VDC
- Contact Form: 3NO-1NC
- Contact Rating: 8
- Dimensions: 22.5 mm W x 120 mm D x 120 mm H
- Display Type: LED
- Enclosure Type: IP20
- Frequency Rating: 0.5
- Power Rating: 4
- Series: Sentry
- Temperature Rating (Degrees F): -10 to 65
- Terminal Type: Screw
- Type: Timer-Function
- Mounting type: DIN Rail

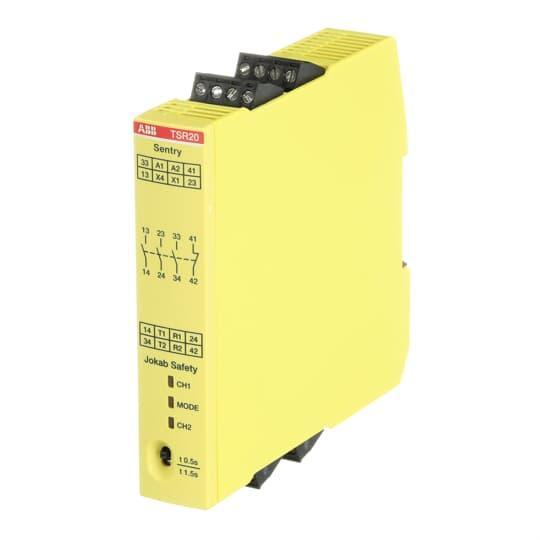

ABB 2TLA010061R0000 Safety Relay
ABB Safety Relay, Timer-Function, Series: Sentry, 50 mA, 4 W Power, 0.5 Hz Frequency, 265 VAC, 350 VDC Coil, 3NO-1NC Contact Form, 8 A Contact, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -10 to 65 deg C, 22.5 mm W x 120 mm D x 120 mm H Dimensions
Additional Description: ABB -2TLA010061R0000 SENTRY TSR20 24VDC 24VD
Catalog Description: TSR20 is a safety expansion timer with delayed relay outputs, 3 NO + 1 NC, and a +24VDC power supply. The OFF-delay time (0,5s or 1,5s) is set with a switch on the front.
- Specifications
- Timer functions with an accuracy of +/-1%
- 5 A at NC, 8 A at NO contact rating
- Multi-reset
- Light-button function
- Configurable models with display
- Faster troubleshooting with display
- Switch for selection of the reset function
- Powerful outputs
- Delayed outputs
- Single function or universal model
