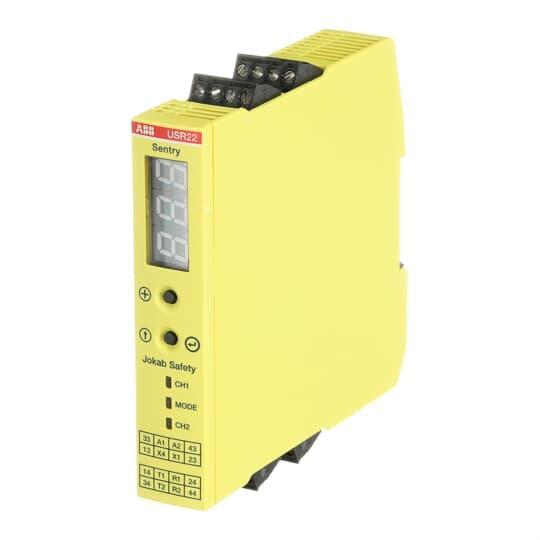

ABB 2TLA010070R0400 Safety Relay
- Amperage Rating: 50
- Coil Voltage: 265 VAC, 350 VDC
- Contact Form: 2NO-2NO
- Contact Rating: 8
- Dimensions: 22.5 mm W x 120 mm D x 120 mm H
- Display Type: LED
- Enclosure Type: IP20
- Frequency Rating: 0.5
- Power Rating: 6
- Series: Sentry
- Temperature Rating (Degrees F): -10 to 65
- Terminal Type: Screw
- Type: Universal-Function
- Mounting type: DIN Rail
ABB 2TLA010070R0400 Safety Relay
ABB Safety Relay, Universal-Function, Series: Sentry, 50 mA, 6 W Power, 0.5 Hz Frequency, 265 VAC, 350 VDC Coil, 2NO-2NO Contact Form, 8 A Contact, DIN Rail Mounting, Screw Terminal, LED Display, IP20 Enclosure, -10 to 65 deg C, 22.5 mm W x 120 mm D x 120 mm H Dimensions
Additional Description: ABB -2TLA010070R0400 SENTRY USR22 24VDC USR2
Catalog Description: USR22 is a universal safety relay/safety timer with relay outputs, 2 NO + 2 delayable NO, and a +24VDC power supply.USR22 is used with safety devices with contacts, 1 or 2 channels , safety devices with OSSD outputs, two-hand devices, safety mats and safety edges/bumpers. USR22 offers 0-999 seconds timer functions with a better accuracy than 1 Percent: OFF-delay, ON-delay, Time bypass and Time reset. A display on its front facilitate configuration and troubleshooting by displaying error codes and error log. A custom configuration can be protected by password. The reset function is selectable between Automatic and Manual.
- Specifications
- Timer functions with an accuracy of +/-1%
- 5 A NC, 8 A NO contact rating
- Multi-reset
- Light-button function
- Configurable models with display
- Faster troubleshooting with display
- Switch for selection of the reset function
- Powerful outputs
- Delayed outputs
- Single function or universal model
