2TLA020007R3100

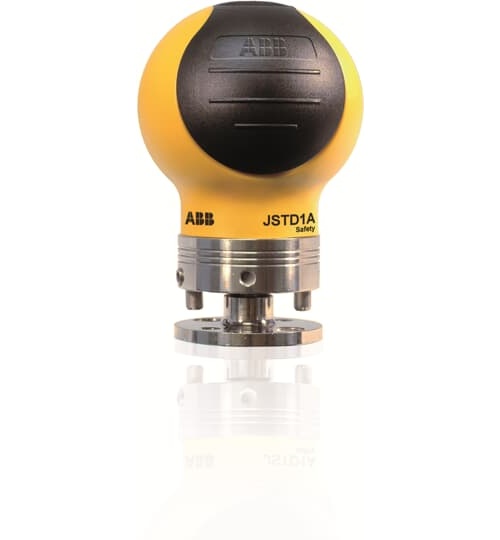

ABB 2TLA020007R3100 Jokab Safety Grip Switch
Part Number # 2TLA020007R3100
SKU # 2311431
ABB 2TLA020007R3100 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA020007R3100 |
| SKU #: | 2311431 |
| Amperage Rating: | 2, 2 A |
| Degree of Protection: | IP67, NEMA IP67 |
| Dimensions: | 71 mm H x 72 in W x 72 in D, 72 mm L x 72 mm W x 71 mm H |
| Series: | Safeball, Safeball™ |
| Temperature Rating (Degrees F): | -25 to 50, -25 to 50 deg C |
| Country of origin: | SE |
| Material: | Plastic, Polypropylene |
| Manufacturer Name: | ABB |
| UNSPSC: | 32151802 |
| UPC: | 07350024460209 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 2TLA020007R3100 Jokab Safety Grip Switch
Brand: ABB
Part Number: 2TLA020007R3100
ABB Jokab Safety Grip Switch, Series: Safeball , 30 VDC, IP67 Degree of Protection, -25 to 50 deg C, Polypropylene, 72 mm L x 72 mm W x 71 mm H Dimensions
Additional Description: ABB -2TLA020007R3100 JSTD1-B SAFEBALL CABLE 2DM TYPE ABB
Catalog Description: JSTD1-B Safeball, 1NO + 1NC, 0.2m wires x 4 for direct connection into an enclosure. Ergonomic design with several grip possibilities and low activation force (approx. 2N) and flexible mounting options. Provides highest level of safety for use in two hand control applications when using two Safeballs in conjunction with appropriate safety relay or Pluto Safety PLC. Maximum load of 30VDC, 2A resistive, IP67 protection degree, plastic body.
2TLA020007R3100 Application
For safe start and stop of machine cycles2TLA020007R3100 Item Features
- Provides highest level of safety for use in two hand control applications when using two Safeball in conjunction with a JSBR4 safety relay or Pluto safety PLC
- 0.2 m wires x 4 for direct connection into an enclosure
- Ergonomic design with several grip possibilities and low activation force (approximate 2N) and flexible mounting options
- 2-channel switching in each hand
2TLA020007R3100 Standards
cCSAus Certified|EN ISO 13849-1 Cat 4|AFS 1994:48|EN ISO 12100-1/-2|EN 954-1|UL ListedSKU #2311431Part Number #2TLA020007R3100UNSPSC32151802UPC07350024460209
