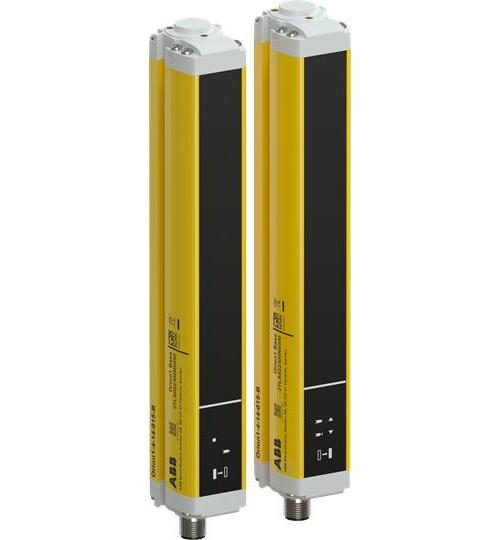

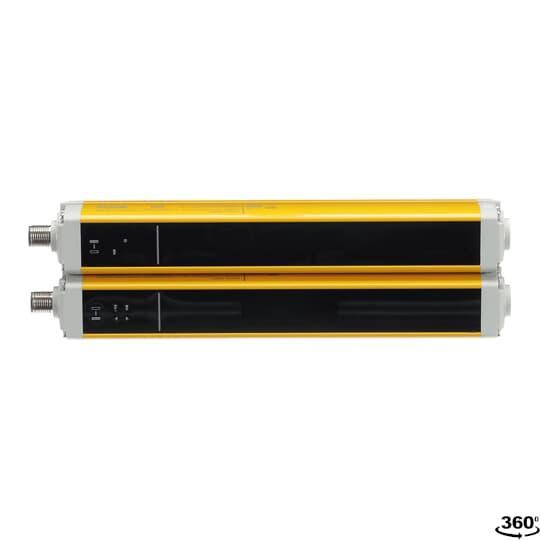

ABB 2TLA022300R0000 Orion1 Type 4 Base Finger Detection Safety Light Curtain
Part Number # 2TLA022300R0000
SKU # 2403210
$1201.42 / Each
ABB 2TLA022300R0000 Key Features
Brand: ABB
Part Number # 2TLA022300R0000
SKU #2403210
Enclosure Type: IP65
Finish: Painted
Light Source: Infrared LED
Number of Beams: 16
Operating Range: 0.2 to 6 m
Output Function Type: 2 PNP
Overall Height: 233.3 mm
Protected Height: 150 mm
Response Time: 11 ms
Series: Orion1
Size: 32.3 mm W x 36.9 mm D
Storage/Operating Temperature: -25 to 70/0 to 55 deg C
Type: Type 4 Base Finger Detection
Cable length: 50 m
Connection type: M12 4-Pole Male on Transmitter/M12 8-Pole Male on Receiver
Country of origin: SE
Housing material: Aluminum
Mounting type: Surface
Output current: 0.5 A
Power supply: 24 VDC
Manufacturer Name: ABB
UNSPSC: 46171620
UPC: 07350024481273
$1201.42 / Each
- ABB, 2TLA022300R0000, Safety Light Curtain, Type 4 Base Finger Detection, Series: Orion1, 32.3 mm W x 36.9 mm D Size, 150 mm Protected Height, 0.2 to 6 m Operating, 16 Beam, 233.3 mm Overall Height, 11 ms Response, 5 deg Aperture Angle, Infrared LED Light Source, 24 VDC Supply, 2 PNP Output Function, 0.5 A Output Current, Aluminum Housing Material, Painted, IP65 Enclosure, M12 4-Pole Male on Transmitter/M12 8-Pole Male on Receiver Connection, 50 m Cable Length, -25 to 70/0 to 55 deg C Storage/Operating, Surface Mounting
2TLA022300R0000 Application
For manually serviced machines2TLA022300R0000 Item Features
- Orion1 base comes with a minimum of advanced functionalities to save cost
- M12 connectors speed up cabling
- A 14 mm resolution is intended for finger detection when the light guard needs to be very close to the machine in order to give the operator a good view and easy accessibility to the machine
- A 14 mm resolution enables a sensing range of 6 m
- A local reset button is connected directly to the light guard instead of to the safety control module in the electrical cabinet
- This saves safety relays/PLC inputs and minimizes cabling to the electrical cabinet
- Clever accessories makes the connection easier
- External device monitoring is a feature allowing the light guard to supervise the actuators in simpler applications, eliminating the need for a safety relay or programmable safety controller
- In this way there is no need for a cable between the reset button and the electrical cabinet or for an extra control module
- Each light curtain can monitor the actuators without any extra control module (EDM function)
- Since the alignment level is displayed, the alignment can be improved before the occurrence of an unwanted stop
- Extensive error indication reduces troubleshooting time
- Protective tubes and lens shields protect the devices in harsh environments
- Alignment help and a wide angle within the limits of a type 4 device facilitate alignment
- Rotation brackets also simplify alignment
2TLA022300R0000 Standards
cULus Listed|TDV Certified|Machinery 2006/42/EC|EMC 2004/108/EC|EN ISO 13849-1:2008|EN 62061:2005+A1:2013|EN 61496-1:2013|EN 61508-1:2010SKU #2403210Part Number #2TLA022300R0000UNSPSC46171620UPC07350024481273
