2TLA022302R0000

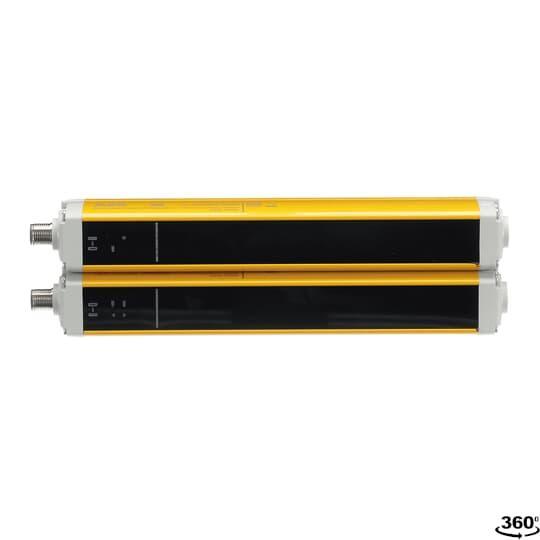

ABB 2TLA022302R0000 Orion1 Type 4 Base Hand Detection Safety Light Curtain
Part Number # 2TLA022302R0000
SKU # 2403211
$1032.72 / Each
ABB 2TLA022302R0000 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA022302R0000 |
| SKU #: | 2403211 |
| Enclosure Type: | IP65 |
| Finish: | Painted |
| Light Source: | Infrared LED |
| Number of Beams: | 8 |
| Operating Range: | 0.2 to 19 m |
| Output Function Type: | 2 PNP |
| Overall Height: | 233.3 mm |
| Protected Height: | 150 mm |
| Response Time: | 9 ms |
| Series: | Orion1 |
| Size: | 32.3 mm W x 36.9 mm D |
| Storage/Operating Temperature: | -25 to 70/0 to 55 deg C |
| Type: | Type 4 Base Hand Detection |
| Cable length: | 50 m |
| Connection type: | M12 4-Pole Male on Transmitter/M12 8-Pole Male on Receiver |
| Country of origin: | SE |
| Housing material: | Aluminum |
| Mounting type: | Surface |
| Output current: | 0.5 A |
| Power supply: | 24 V DC, 24 VDC |
| Manufacturer Name: | ABB |
| UNSPSC: | 46171620 |
| UPC: | 07350024481501 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1032.72 / Each
Quantity:
- ABB, 2TLA022302R0000, Safety Light Curtain, Type 4 Base Hand Detection, Series: Orion1, 32.3 mm W x 36.9 mm D Size, 150 mm Protected Height, 0.2 to 19 m Operating, 8 Beam, 233.3 mm Overall Height, 9 ms Response, 5 deg Aperture Angle, Infrared LED Light Source, 24 V DC Supply, 2 PNP Output Function, 0.5 A Output Current, Aluminum Housing Material, Painted, IP65 Enclosure, M12 4-Pole Male on Transmitter/M12 8-Pole Male on Receiver Connection, 50 m Cable Length, -25 to 70/0 to 55 deg C Storage/Operating, Surface Mounting
2TLA022302R0000 Application
For manually serviced machines2TLA022302R0000 Item Features
- Orion1 base comes with a minimum of advanced functionalities to save cost
- M12 connectors speed up cabling
- A 30 mm resolution is intended for hand detection and area protection and is a good compromise between cost and accessibility to the machine
- A 30 mm resolution enables a sensing range of 19 m
- A local reset button is connected directly to the light guard instead of to the safety control module in the electrical cabinet
- This saves safety relays/PLC inputs and minimizes cabling to the electrical cabinet
- Clever accessories makes the connection easier
- External device monitoring is a feature allowing the light guard to supervise the actuators in simpler applications, eliminating the need for a safety relay or programmable safety controller
- In this way there is no need for a cable between the reset button and the electrical cabinet or for an extra control module
- Each light curtain can monitor the actuators without any extra control module (EDM function)
- Since the alignment level is displayed, the alignment can be improved before the occurrence of an unwanted stop
- Extensive error indication reduces troubleshooting time
- Protective tubes and lens shields protect the devices in harsh environments
- Alignment help and a wide angle within the limits of a type 4 device facilitate alignment
- Rotation brackets also simplify alignment
2TLA022302R0000 Standards
