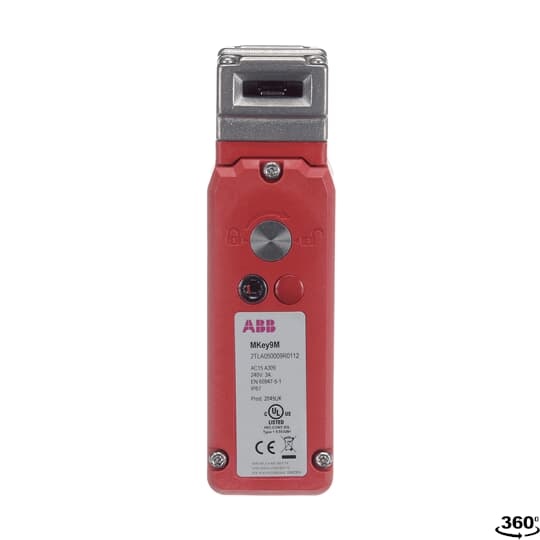

ABB 2TLA050009R0112 Jokab Safety Guard Safety Interlock Switch

2372647 MFG #: 2TLA050009R0112
$291.25 / EA
Usually Ships within 5-8 Days
  • Action: Manual
  • Actuator Type: Standard Key
  • Contact Configuration: 2NO-2NC
  • Enclosure Type: IP67
  • Operating Cycles: 8
  • Operating Temperature: -25 to 40
  • Power Rating: 12
  • Series: Mkey9M
  • Size: 160 mm L x 46 mm W x 45.5 mm H
  • Type: Solenoid Locking
  • Voltage Rating: 24
  • Connection type: M20
  • Material: Glass Filled Polyester/316 Stainless Steel
  • Mounting type: Threaded

ABB 2TLA050009R0112 Jokab Safety Guard Safety Interlock Switch

ABB Jokab Safety Guard Safety Interlock Switch, Solenoid Locking, Series: Mkey9M, 24 VAC/VDC, 12 W Power, 2NO-2NC Contact Configuration, Manual Action, Standard Key Actuator, M20 Connection, IP67 Enclosure, Threaded Mounting, 160 mm L x 46 mm W x 45.5 mm H Size, 8 Cycles/hr Operating Cycles, -25 to 40 deg C Operating, Glass Filled Polyester/316 Stainless Steel

Additional Description: ABB -2TLA050009R0112 (N) MKEY9M, SOL M20, 24V STD. KEY NON-CANCELABLE, NON-RETURNABLE

Catalog Description: 9M Guard locking plastic safety switch with M20 connector, 24 V with standard key

  • Specifications
  • The MKey9M series guard locking switches have a slim plastic body design and have been developed with a holding force of 1800 N to keep medium guard doors closed until hazards have been removed
  • They are power to lock - spring to unlock - suitable for applications where immediate unlocking is required at removal or loss of power
  • The high specification plastic body has a high resistance to chemical and washdown solutions and the stainless steel head provides durable robust protection of the cam interlock
  • IP67 enclosure protections maintained by a double seal lid gasket design and metal fixings
  • They have a slim profile and are designed to fit on 50 mm frame sections or to applications where space is restricted
  • The head will rotate to provide up to 8 actuator entry positions
