Part Number # 2TLA050074R2120
SKU # 2311312
2TLA050074R2120
ABB 2TLA050074R2120 Safety Switch
Part Number # 2TLA050074R2120
SKU # 2311312
ABB 2TLA050074R2120 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA050074R2120 |
| SKU #: | 2311312 |
| Actuator Type: | Magnetic |
| Contact Configuration: | 1NO-2NC |
| Contact Rating: | 0.2 A at 24 V DC/2 A at 250 V AC, 0.2 A at 24 VDC/2 A at 250 VAC |
| Dimensions: | 31.5 mm W x 16.5 mm D |
| Enclosure Type: | IP67/IP69K |
| Series: | Sense 6Z Power |
| Type: | Non-Contact Heavy Duty |
| Cable length: | 250 mm |
| Connection type: | QC Cable |
| Country of origin: | GB |
| Material: | Polyester |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00804325836456 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 2TLA050074R2120 Safety Switch
Brand: ABB
Part Number: 2TLA050074R2120
ABB Jokab Safety Safety Switch, Non-Contact Heavy Duty, Series: Sense 6Z Power, 77 mm L x 31.5 mm W x 16.5 mm H Actuator, 0.2 A at 24 VDC/2 A at 250 VAC Contact, 1NO-2NC, QC Cable, IP67/IP69K Enclosure, Polyester, 31.5 mm W x 16.5 mm D
Additional Description: ABB -2TLA050074R2120 (N) SENSE 6, SS QC CABLE, 2NC/1NO NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Safety magnetic switch complete with actuator, 2NC+1NO (guard closed and actuator present), stainless steel, LED, 250mm cable with M12-8 male connector.
2TLA050074R2120 Application
For CIP and SIP cleaning - food splash zones EHEDG guidelines2TLA050074R2120 Item Features
- Industry standard fixings - can be high pressure hosed at high temperature - IP69K
- Wide 12 mm sensing - high tolerance to misalignment
- Specifically designed for food processing applications - 316 stainless steel mirror polished finish (Ra4)
- Robust wide fitting suitable for all industry application
- High switching capability - heavy duty 2A
- Ensures that a machine stops when a door or a hatch is opened
2TLA050074R2120 Standards
CE Certified|cULus Listed|TUV Certified|UL Listed|CE Certified|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-3|EN 954-1|UL 508SKU #2311312Part Number #2TLA050074R2120UNSPSC39122205UPC00804325836456

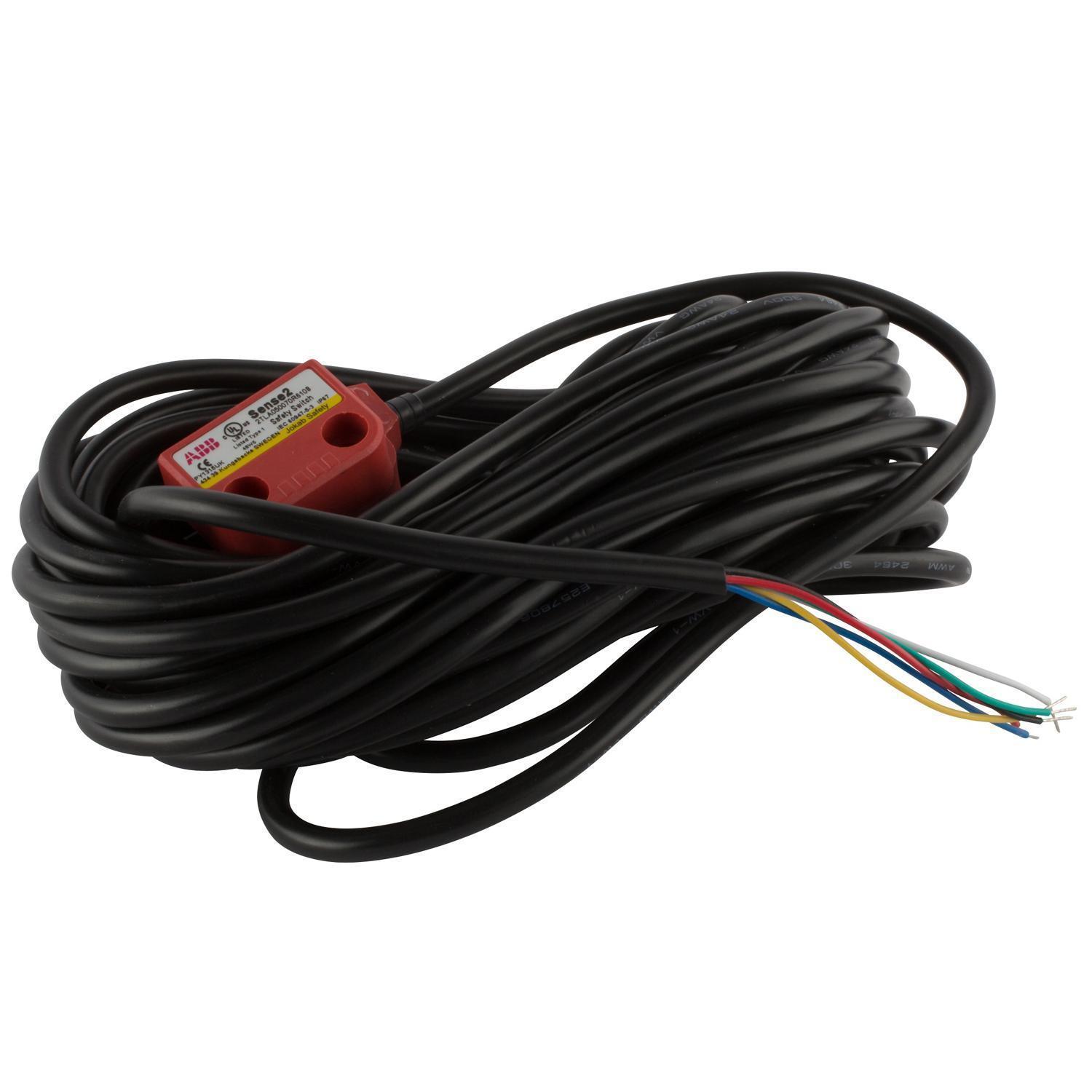

Image provided may only be a representation of final product and may include optional equipment
