2TLA050202R1020

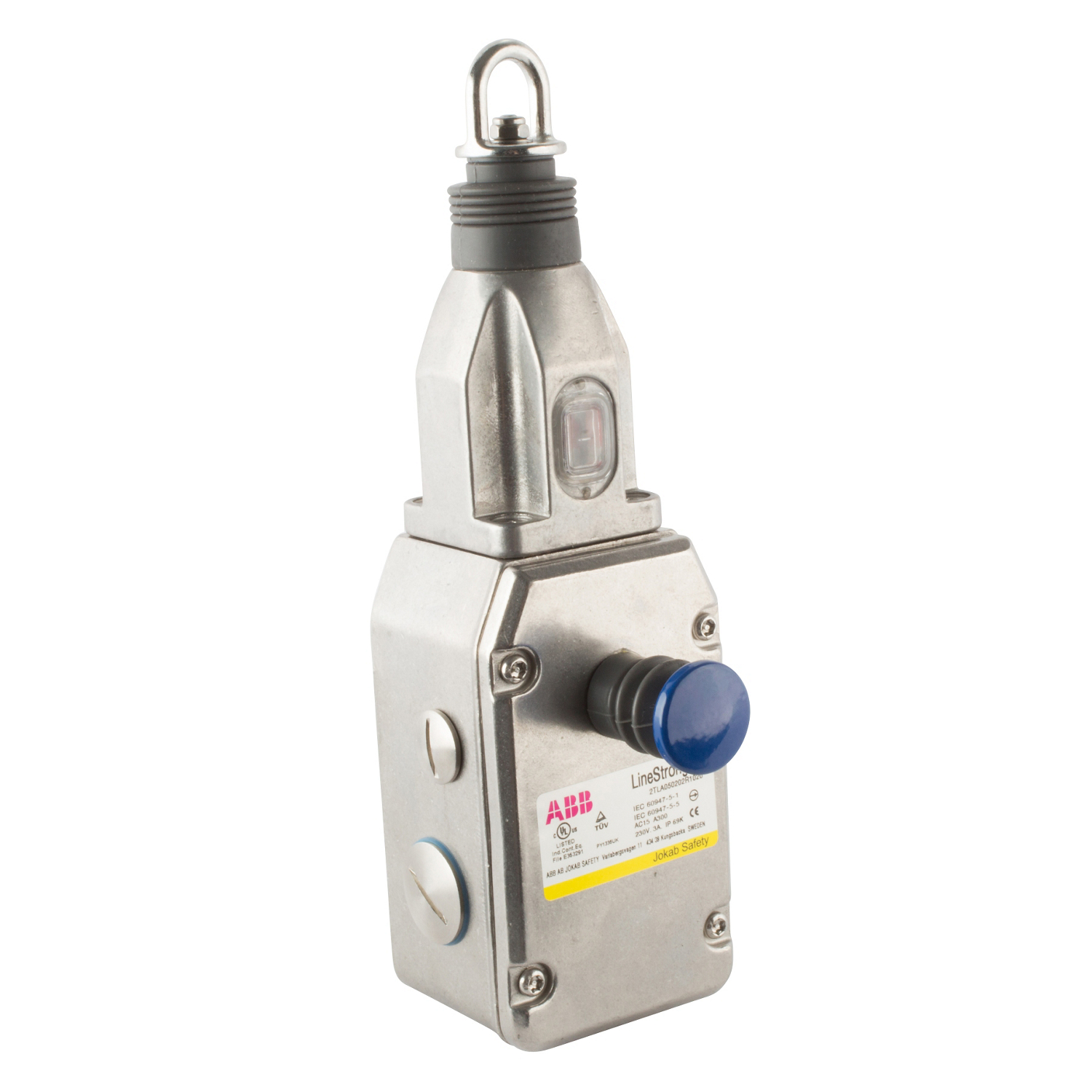

ABB 2TLA050202R1020 Safety Rope Pull Switch
Part Number # 2TLA050202R1020
SKU # 2277835
$605.81 / Each
ABB 2TLA050202R1020 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA050202R1020 |
| SKU #: | 2277835 |
| Action: | Snap |
| Actuator: | Rope |
| Amperage Rating: | 3 A |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 239 mm L x 96 mm W x 86 mm H |
| Enclosure Type: | IP67/IP69K |
| Number of Poles: | 4 |
| Series: | LineStrong2Z |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Terminal Type: | Clamp |
| Type: | Standard Duty |
| Country of origin: | FR |
| Material: | 316 Stainless Steel |
| Mounting type: | Threaded |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00804325609678 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$605.81 / Each
Quantity:
- ABB, 2TLA050202R1020, Rope Pull Switch, Standard Duty, Series: LineStrong2Z, 240 V AC, 3 A, Snap Action, 4 Pole, 2NO-2NC Contact Configuration, Rope Actuator, IP67/IP69K Enclosure, Threaded Mounting, Clamp Terminal, -25 to 80 deg C, 316 Stainless Steel, 239 mm L x 96 mm W x 86 mm H Dimensions
2TLA050202R1020 Application
For designed to protect long conveyor lengths2TLA050202R1020 Item Features
- An easily seen bi-color LED available to show switch status from a distance and they have 4-pole contact blocks to ensure flexibility with all modern control applications
- Provide a reliable general purpose safety solution for conveyors
- The 316 stainless steel housings are designed specifically to withstand the tough environments found in the food and pharmaceutical industries
- They are all purpose switches and will survive chemical and detergent wash down by providing all stainless steel parts and robust IP67 and IP69K sealing by using integral bellows and gaskets
- The fixing holes are under the cover of the switch to prevent food trap areas
- Shorter rope spans up to 80 m can be achieved by using just one switch therefore making a cost effective solution and also reducing electrical wiring runs
- The LineStrong2Z is a general duty safety rope pull switch designed to protect long conveyor lengths up to 100 m
2TLA050202R1020 Standards
cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508SKU #2277835Part Number #2TLA050202R1020UNSPSC39122205UPC00804325609678
Image provided may only be a representation of final product and may include optional equipment
