Part Number # 2TLA050202R1130
SKU # 2398348
2TLA050202R1130

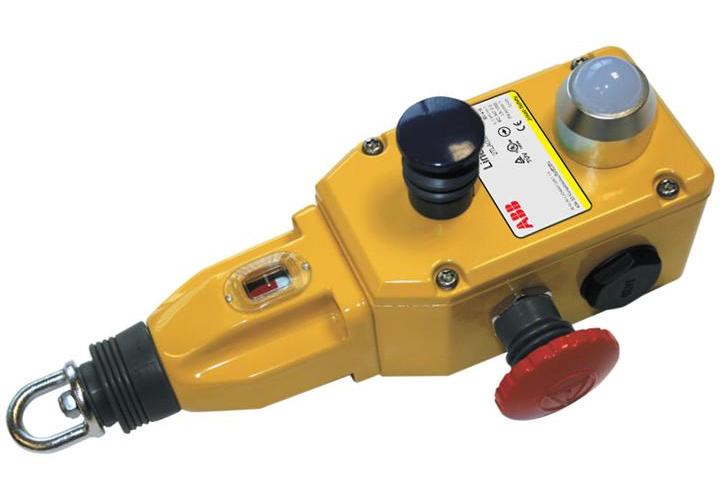

ABB 2TLA050202R1130 Jokab Safety Rope Pull Switch
Part Number # 2TLA050202R1130
SKU # 2398348
ABB 2TLA050202R1130 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA050202R1130 |
| SKU #: | 2398348 |
| Action: | Snap |
| Amperage Rating: | 3 A |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 239 mm L x 96 mm W x 86 mm H |
| Enclosure Type: | IP67 |
| Number of Poles: | 4 |
| Series: | LineStrong2 |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Terminal Type: | Clamp |
| Type: | Standard Duty |
| Country of origin: | GB |
| Material: | Die Cast Aluminum Alloy |
| Mounting type: | Threaded |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00804325837729 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 2TLA050202R1130 Jokab Safety Rope Pull Switch
Brand: ABB
Part Number: 2TLA050202R1130
ABB Jokab Safety Rope Pull Switch, Standard Duty, Series: LineStrong2, 240 VAC, 3 A, Snap Action, 4 Pole, 2NO-2NC Contact Configuration, IP67 Enclosure, Threaded Mounting, Clamp Terminal, -25 to 80 deg C, Die Cast Aluminum Alloy, 239 mm L x 96 mm W x 86 mm H Dimensions
Additional Description: ABB -2TLA050202R1130 (N) LINESTRONG2, 2NC/2NO, NPT ESTOP NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Rope Pull Emergency Stop, die cast housing , with 1/2NPT entry, 2NC + 2NO for spans up to 60m (1 rope pull) or 80m (using 2 rope pulls), with built in emergency stop
2TLA050202R1130 Item Features
- A bi-color LED is available to show switch status from a distance and they have 4-pole contact blocks to ensure flexibility with all modern control applications
- Rugged integral sealing bellows means they can be high pressure hosed and the choice of materials makes them suitable for inside or outside use
- They can be supplied with a mushroom type emergency stop button which can be fitted to the side of the switch to offer an extra traditional emergency stop function close to the switch or can be fitted later after installation without any extra wiring
- They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the applications
- LineStrong2 is a general duty robust die cast safety rope pull switch designed to protect conveyor lengths where protection is required up to 80 m using two switches or up to 60 m using a single switch
2TLA050202R1130 Standards
cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508SKU #2398348Part Number #2TLA050202R1130UNSPSC39122205UPC00804325837729
Image provided may only be a representation of final product and may include optional equipment
