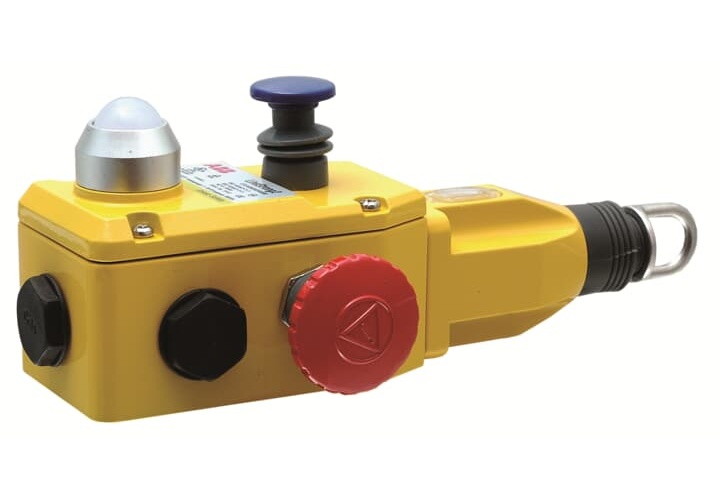

ABB 2TLA050202R1232 Safety Rope Pull Switch
Part Number # 2TLA050202R1232
SKU # 2324221
$363.12 / Each
ABB 2TLA050202R1232 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA050202R1232 |
| SKU #: | 2324221 |
| Action: | Snap |
| Actuator: | Rope |
| Amperage Rating: | 3 A |
| Contact Configuration: | 2NO-2NC |
| Dimensions: | 239 mm L x 96 mm W x 86 mm H |
| Enclosure Type: | IP67 |
| Number of Poles: | 4 |
| Series: | LineStrong2 |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Terminal Type: | Clamp |
| Type: | Standard Duty |
| Country of origin: | GB |
| Material: | Die Cast Aluminum Alloy |
| Mounting type: | Threaded |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00804325837750 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$363.12 / Each
Quantity:
- ABB, 2TLA050202R1232, Rope Pull Switch, Standard Duty, Series: LineStrong2, 240 V AC, 3 A, Snap Action, 4 Pole, 2NO-2NC Contact Configuration, Rope Actuator, IP67 Enclosure, Threaded Mounting, Clamp Terminal, -25 to 80 deg C, Die Cast Aluminum Alloy, 239 mm L x 96 mm W x 86 mm H Dimensions
2TLA050202R1232 Application
For designed to protect long conveyor lengths2TLA050202R1232 Item Features
- They provide a reliable general purpose safety solution for conveyors and offer a choice of fittings depending upon the applications
- A bi-color LED is available to show switch status from a distance and they have 4-pole contact blocks to ensure flexibility with all modern control applications
- Rugged integral sealing bellows means they can be high pressure hosed and the choice of materials makes them suitable for inside or outside use
- They can be supplied with a mushroom type emergency stop button which can be fitted to the side of the switch to offer an extra traditional emergency stop function close to the switch or can be fitted later after installation without any extra wiring
- Designed specifically to withstand the tough environments found in the food and pharmaceutical industries
- LineStrong2 is a general duty robust die cast safety rope pull switch designed to protect conveyor lengths where protection is required up to 80 m using two switches or up to 60 m using a single switch
2TLA050202R1232 Standards
BAA Compliant|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508SKU #2324221Part Number #2TLA050202R1232UNSPSC39122205UPC00804325837750
