Part Number # 2TLA050206R1030
SKU # 2431832
Image Disclaimers Message
Brand: ABB
2TLA050206R1030

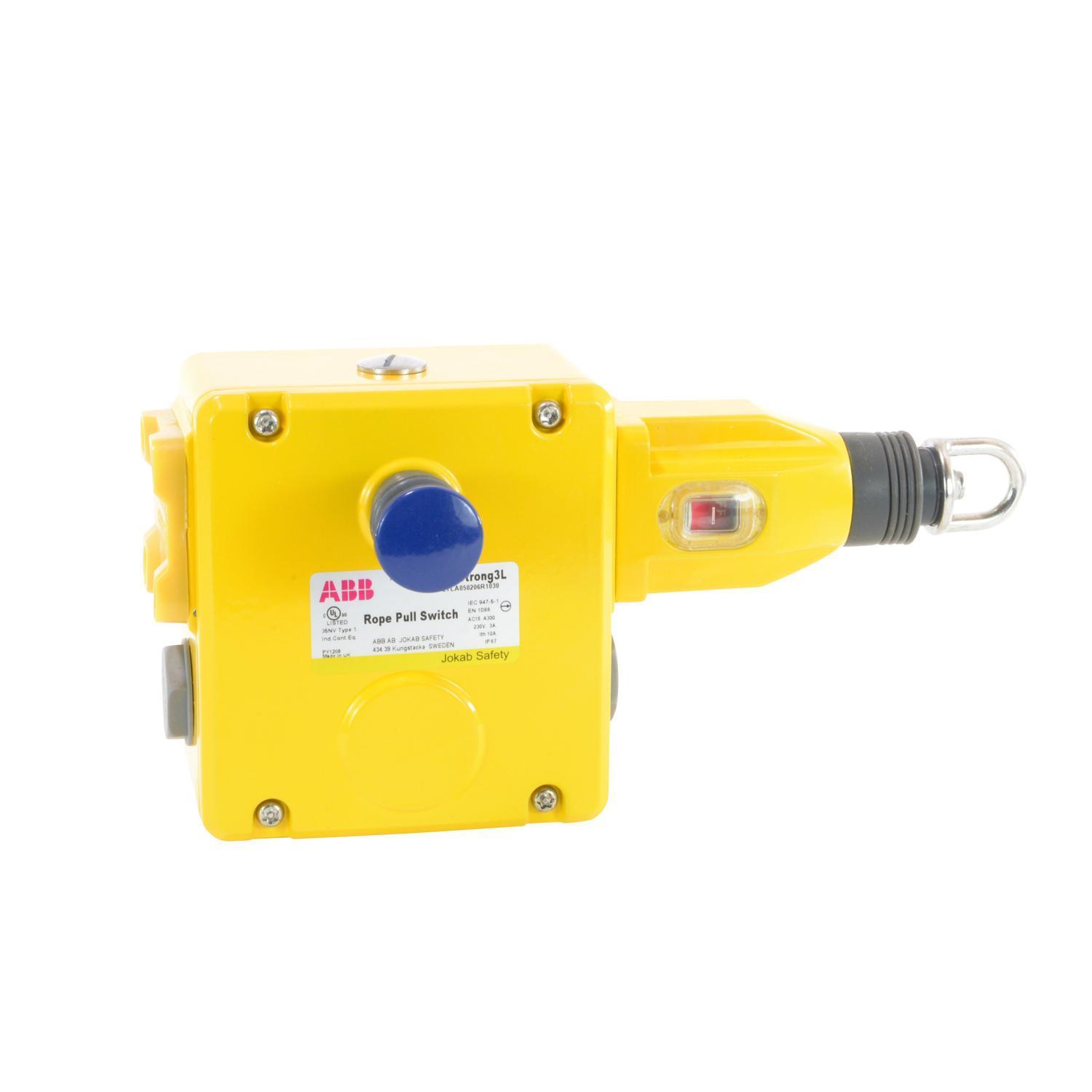

ABB 2TLA050206R1030 Linestrong3L Jokab Safety Switch
Part Number # 2TLA050206R1030
SKU # 2431832
$311.82 / Each
ABB 2TLA050206R1030 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA050206R1030 |
| SKU #: | 2431832 |
| Action: | Snap |
| Amperage Rating: | 3 A |
| Contact Configuration: | 2NO-4NC |
| Dimensions: | 12.9 to 14.2 x 2.36 x 5.63 in |
| Enclosure Type: | IP67 |
| Series: | LineStrong3L |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Terminal Type: | Clamp |
| Type: | Heavy Duty Left-Side NPT |
| Country of origin: | FR |
| Material: | Stainless Steel |
| Mounting type: | Threaded |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00804325609715 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$311.82 / Each
Quantity:
- ABB, 2TLA050206R1030, LineStrong3L Jokab Safety Switch, Heavy Duty Left-Side NPT, Series: LineStrong3L, 240 V AC, 3 A, Snap Action, 2NO-4NC Contact Configuration, IP67 Enclosure, Threaded Mounting, Clamp Terminal, -25 to 80 deg C, Stainless Steel, 12.9 to 14.2 x 2.36 x 5.63 in Dimensions
2TLA050206R1030 Application
To protect long conveyor length2TLA050206R1030 Item Features
- They can be used to compliment the LineStrong3D versions at each end of the rope span
- The LineStrong3L/R is a robust die cast heavy duty safety rope pull switch designed to protect long conveyor lengths where protection is required up to 125 m using two switches or up to 100 m using a single switch
- A bi-color LED ensures switch status can be seen easily from a distance
- The die cast housings are robust to survive indoor or outdoor use
- They have 4NC-2NO contacts to ensure flexibility with all modern control applications
2TLA050206R1030 Standards
IEC 947-5-1 UL508|IEC 947-5-5 ISO13850|IEC 954-1 ISO13849-1|EN62061|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|EN 954-1|UL 508SKU #2431832Part Number #2TLA050206R1030UNSPSC39122205UPC00804325609715
