2TLA050208R1222

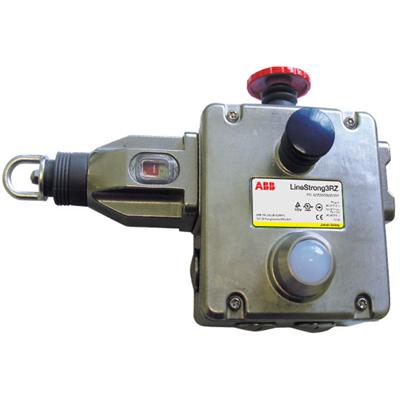

ABB 2TLA050208R1222 Jokab Safety Rope Pull Switch
Part Number # 2TLA050208R1222
SKU # 2429394
$652.55 / Each
ABB 2TLA050208R1222 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA050208R1222 |
| SKU #: | 2429394 |
| Action: | Snap |
| Amperage Rating: | 3 A |
| Contact Configuration: | 2NO-4NC |
| Dimensions: | 240 mm L x 92 mm W x 143 mm H |
| Enclosure Type: | IP67/IP69K |
| Series: | LineStrong3RZ |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Terminal Type: | Clamp |
| Type: | Heavy Duty Right Hand |
| Country of origin: | FR |
| Material: | 316 Stainless Steel |
| Mounting type: | Threaded |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00804325609807 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$652.55 / Each
Quantity:
- ABB Jokab Safety Rope Pull Switch, Heavy Duty Right Hand, Series: LineStrong3RZ, 240 VAC, 3 A, Snap Action, 2NO-4NC Contact Configuration, IP67/IP69K Enclosure, Threaded Mounting, Clamp Terminal, -25 to 80 deg C, 316 Stainless Steel, 240 mm L x 92 mm W x 143 mm H Dimensions
2TLA050208R1222 Item Features
- The LineStrong3LZ/RZ is a robust heavy duty safety rope pull switch designed to protect long conveyor lengths where protection is required up to 125 m using two switches or up to 100 m using a single switch
- The 316 stainless steel housings are designed specifically to withstand the tough environments found in the food and pharmaceutical industries
- They will survive chemical and detergent washdown by providing all stainless steel parts and robust IP67 and IP69K sealing by using integral bellows and gaskets
- They can be used to compliment the LineStrong3DZ versions at each end of the rope span
2TLA050208R1222 Standards
CE Certified|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508SKU #2429394Part Number #2TLA050208R1222UNSPSC39122205UPC00804325609807
