Part Number # 2TLA050208R1232
SKU # 2445747
Image Disclaimers Message
2TLA050208R1232
ABB 2TLA050208R1232
Part Number # 2TLA050208R1232
SKU # 2445747
$347.18 / Each
ABB 2TLA050208R1232 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 2TLA050208R1232 |
| SKU #: | 2445747 |
| Action: | Snap |
| Amperage Rating: | 3 A |
| Contact Configuration: | 2NO-4NC |
| Dimensions: | 240 mm L x 92 mm W x 143 mm H |
| Enclosure Type: | IP67 |
| Series: | LineStrong3R |
| Temperature Rating (Degrees F): | -25 to 80 deg C |
| Terminal Type: | Clamp |
| Type: | Heavy Duty Right Hand |
| Country of origin: | GB |
| Material: | Die Cast Aluminum Alloy |
| Mounting type: | Threaded |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00804325609746 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$347.18 / Each
Quantity:

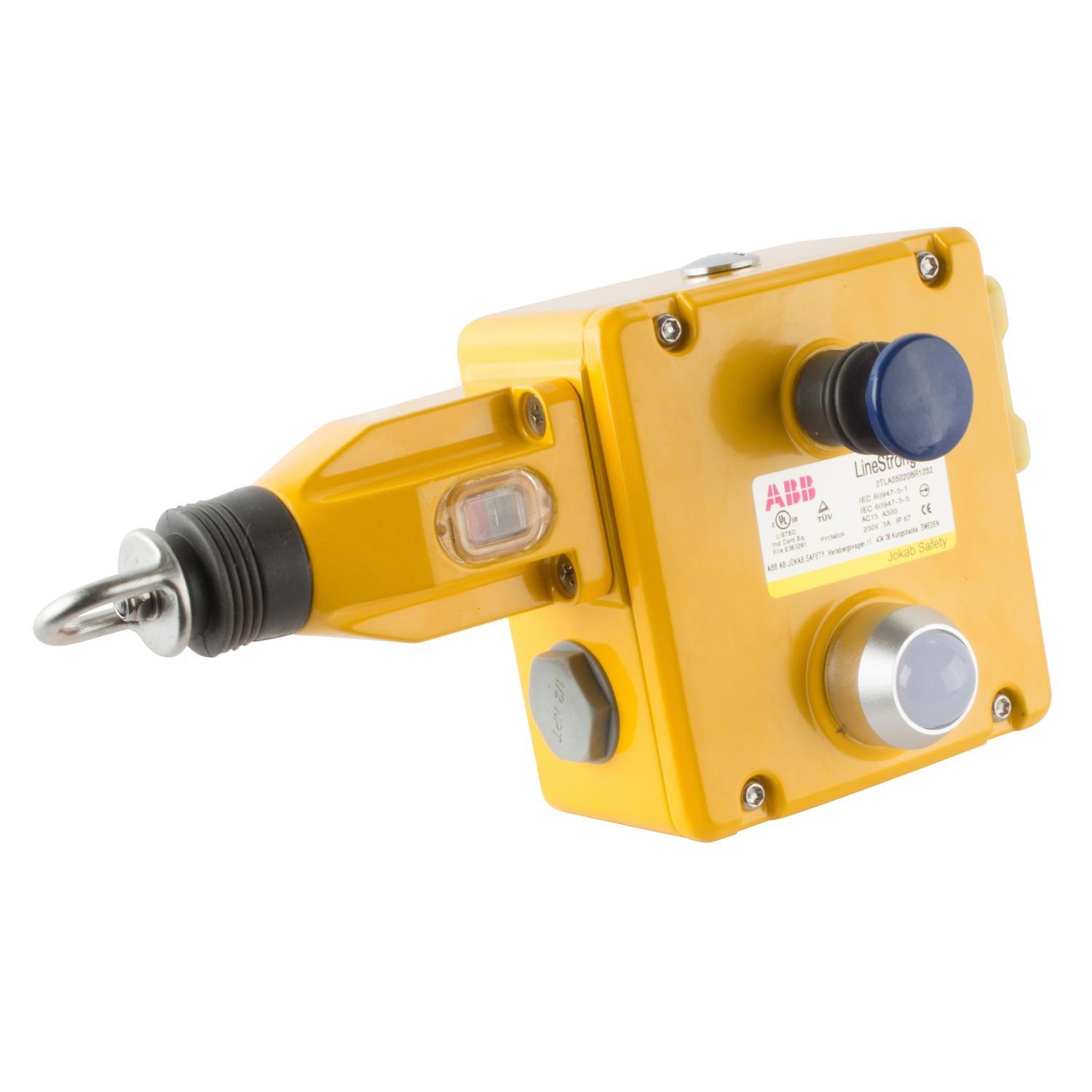

- ABB Jokab Safety Rope Pull Switch, Heavy Duty Right Hand, Series: LineStrong3R, 240 VAC, 3 A, Snap Action, 2NO-4NC Contact Configuration, IP67 Enclosure, Threaded Mounting, Clamp Terminal, -25 to 80 deg C, Die Cast Aluminum Alloy, 240 mm L x 92 mm W x 143 mm H Dimensions
2TLA050208R1232 Item Features
- The LineStrong3L/R is a robust die cast heavy duty safety rope pull switch designed to protect long conveyor lengths where protection is required up to 125 m using two switches or up to 100 m using a single switch
- The die cast housings are robust to survive indoor or outdoor use
- A bi-color LED ensures switch status can be seen easily from a distance
- They have 4NC-2NO contacts to ensure flexibility with all modern control applications
- They can be used to compliment the LineStrong3D versions at each end of the rope span
2TLA050208R1232 Standards
CE Certified|cULus Listed|TUV Certified|EN 1088|EN 60204-1|EN 62061|ISO 13849-1|IEC 947-5-1|EN 954-1|UL 508SKU #2445747Part Number #2TLA050208R1232UNSPSC39122205UPC00804325609746
