Part Number # 9T10A2293
SKU # 2437648
9T10A2293
ABB 9T10A2293 Ge General Purpose Transformer
Part Number # 9T10A2293
SKU # 2437648
ABB 9T10A2293 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | 9T10A2293 |
| SKU #: | 2437648 |
| Enclosure Type: | NEMA 2 |
| Frequency Rating: | 60 Hz |
| Phase: | 3 |
| Primary Voltage: | 575 V AC, 575 VAC |
| Secondary Voltage: | 208Y/120 V AC, 208Y/120 VAC |
| Series: | 9T |
| Temperature Rating (Degrees F): | 150 deg C |
| Type: | Type QL Dry Standard Vented |
| Mounting type: | Foot |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121001 |
| UPC: | 00783173902936 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB 9T10A2293 Ge General Purpose Transformer
Brand: ABB
Part Number: 9T10A2293
Additional Description: ABB -9T10A2293 (N) 3A,45KVA,575-208Y,150C,N2,K1,DOE NON-CANCELABLE, NON-RETURNABLE
Catalog Description: ABB Low-Voltage General Purpose Dry-Type transformers are built to last more than 20 years and are UL Listed. Our Type QL & QF transformers meet DOE 2016 efficiency standards and are UL Energy Verified as energy efficient. They are available with aluminum or copper windings and in all three temperature rise ratings. Quiet Performance-Core and coil assemblies are mounted on rubber isolation pads to reduce noise. Single-piece front/back is easily removable for installation and service. Qualified to the seismic requirements of IEEE-693-2005 and IBC-2021 and CBC 2022.
9T10A2293 Application
General Purpose Lighting, Electrical, Motor, Resistance Heating, Motor Generator (Without Solid State Drives), Electrical Distribution and Control Applications9T10A2293 Includes
Lug Kit, Ground Bar Kit9T10A2293 Item Features
- Quiet performance
- Outward facing mounting feet
- Core and coil assemblies are mounted on rubber isolation pads to reduce noise
- Bolted coil terminations
- 1-piece front/back is easily removable for service
- NEMA 2 drip proof enclosure is standard
- Aluminum windings
- Copper ground strap
- Robust packaging with top and side protection protects against shipping damage
- Accessible mounting flanges with front/back slotted mounting holes make installation easier
- 100% factory tested for shorts and coil integrity, current and loss, voltage, impedance and noise
- Clear, comprehensive documentation and labeling
9T10A2293 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL Listed|UL Recognized|ANSI Specified|IEEE-693-2005|IBC-2012|CBC 2013|DOE 2016SKU #2437648Part Number #9T10A2293UNSPSC39121001UPC00783173902936

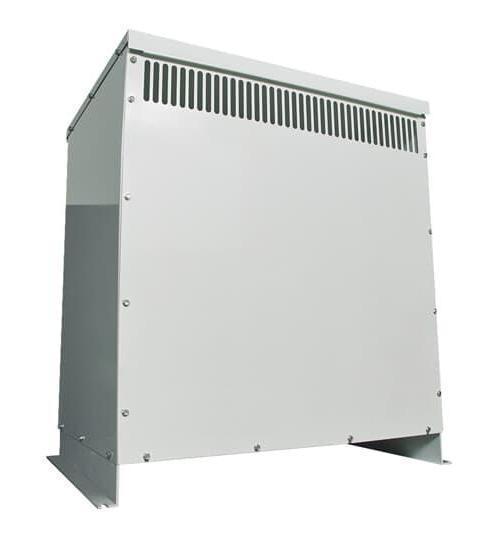

Image provided may only be a representation of final product and may include optional equipment
