Part Number # A75-30-11-81
SKU # 2425467
Image Disclaimers Message
A75-30-11-81

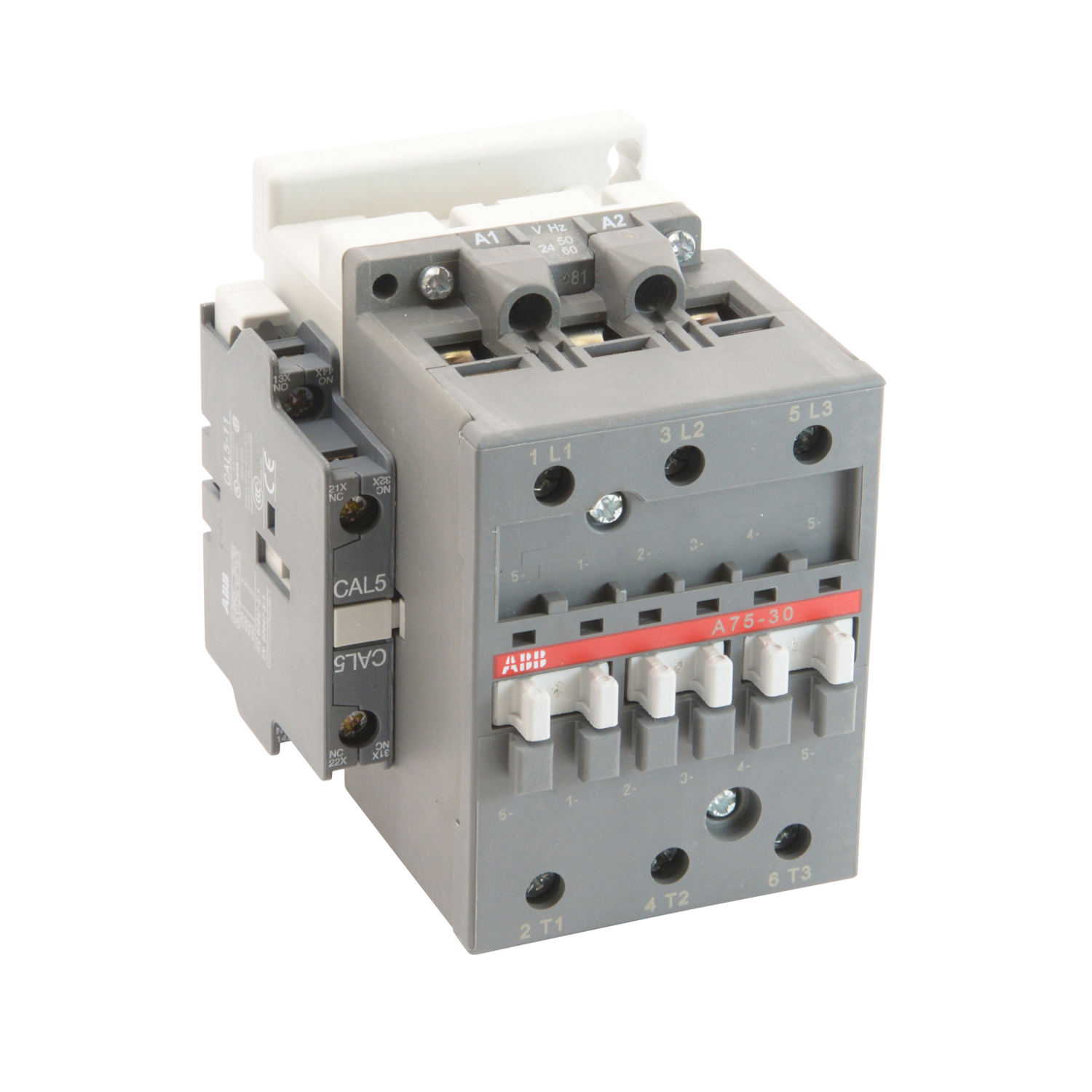

ABB A75-30-11-81 3-Phase A-Line AC Operated Non-Reversing IEC Contactor
Part Number # A75-30-11-81
SKU # 2425467
$688.67 / Each
Typical price:$970.16 / Each
ABB A75-30-11-81 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | A75-30-11-81 |
| SKU #: | 2425467 |
| Coil Power Rating: | 25 hp, 30 hp, 60 hp, 75 hp |
| Coil Voltage: | 24 V AC, 24 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 4.33 in H x 3.22 in W x 4.25 in D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO-1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | 3-Phase A-Line AC Operated Non-Reversing |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Mounting type: | Snap-On/DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471522093813 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$688.67 / Each
Typical price:$970.16 / Each
Quantity:
- ABB, A75-30-11-81, IEC Contactor, 3-Phase A-Line AC Operated Non-Reversing, 24 V AC Coil, 105 A Maximum Load Current, 25 hp, 30 hp, 60 hp, 75 hp Coil, 3 Pole, 50/60 Hz Frequency, Double Break Contact, 3NO Contact Configuration, 1NO-1NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -40 to 70 deg C Operating, Snap-On/DIN Rail Mounting, 4.33 in H x 3.22 in W x 4.25 in D Dimensions
A75-30-11-81 Application
For controlling 3-phase motors and for controlling power circuits corresponding to their operating characteristics up to 690 and even 1000 VAC and 440 VDCA75-30-11-81 Item Features
- 25 hp at 208 V, 30 hp at 240 V, 60 hp at 480 V, 75 hp at 575/600 V
- 24 V at 50/60 Hz
A75-30-11-81 Standards
RoHS Compliant|CSA Certified|CCC Compliant|DNV-GL Approved|GOST Certified|RINA Approved|cUL ListedSKU #2425467Part Number #A75-30-11-81UNSPSC39121529UPC03471522093813
