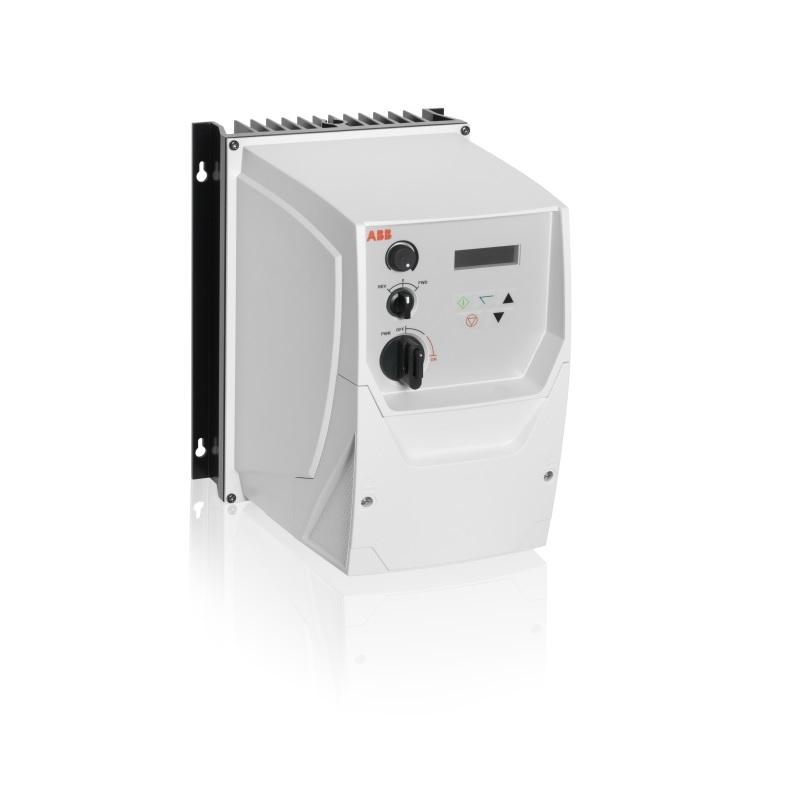

ABB ACS255-03U-22A0-6 Micro AC Drive

2369384 MFG #: ACS255-03U-22A0-6
$2,479.45 / EA
Usually Ships within 5-8 Days

ABB ACS255-03U-22A0-6 Micro AC Drive

ABB Micro AC Drive, 3-Phase Low Voltage, Series: ACS255, 500 to 600 VAC Input/600 VAC Output, 22 A, 20 hp, 5.2 in Width, 8.1 in Depth, 10.3 in Height, Open/IP20 Enclosure, Integral and/or Remote Mount Control Panel with Keypad and LED Display, DIN Rail/Wall Mounting

Additional Description: ABBD-ACS255-03U-22A0-6 ACS255-03U 600V 20HP 22A IP20

Catalog Description: MICRO DRIVE, Product Family: ACS255, Wall or DIN Rail mounted, 20 HP, 22 A, 600 VAC, 450-660 VAC Input Range, 0-600 V Output Range, UL Type Open (IP20), Integral and/or remote mount control panel with keypad and LED display, 3-Phase Supply / 3-Phase Output, Frame: P3, Product HxWxD: 10.3 x 5.2 x 8.1 in, Weight: 7.7 lbs

  • Specifications
  • 150% peak overload capacity
  • Easy access to power and I/O connections for rapid installation
  • Selection options for braking resistors, input reactors and output filters
  • Safe torque off (STO) as standard
  • Modbus-RTU built-in
  • User friendly control panel with LED display
  • Wall or DIN rail mounting options for IP20 drives
  • Feed through wiring on IP20 drives
  • PI control
  • Sensorless vector and V/Hz control - all voltages
  • Conformally coated boards
  • Operating mode selection
