Part Number # ACS580-01-027A-4
SKU # 2350663
ACS580-01-027A-4

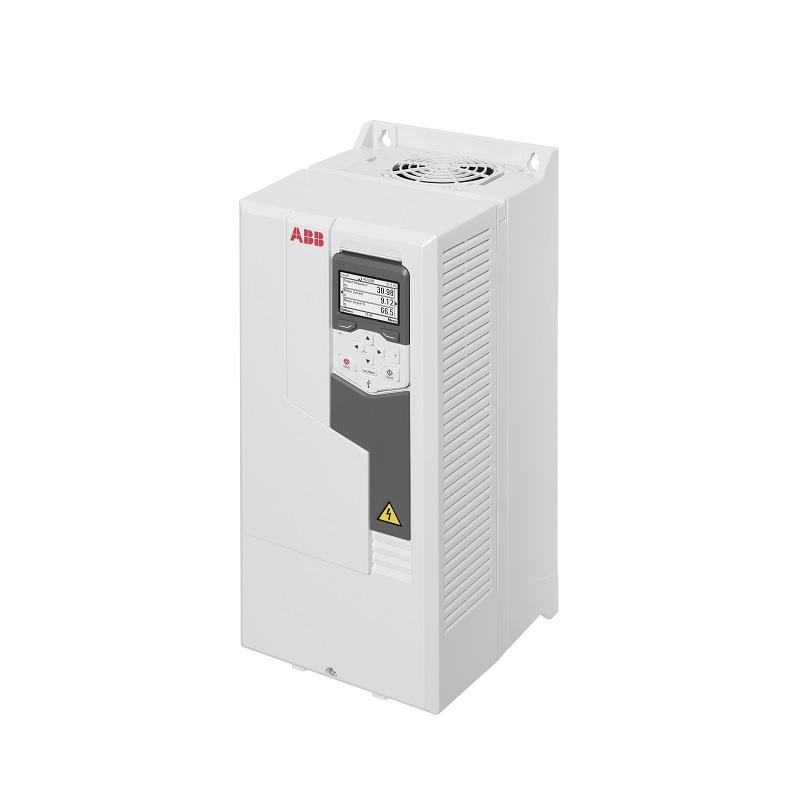

ABB ACS580-01-027A-4 AC Drive
Part Number # ACS580-01-027A-4
SKU # 2350663
ABB Drives ACS580-01-027A-4 Key Features
| Brand: | ABB Drives |
|---|---|
| Part Number # : | ACS580-01-027A-4 |
| SKU #: | 2350663 |
| Display Type: | Assistant Control Panel |
| Enclosure Type: | UL Type 1/IP21 |
| Finish: | Hot Dipped Zinc |
| Horsepower: | 15 hp, 20 hp |
| Series: | ACS580 |
| Type: | 3-Phase Low Voltage General Purpose |
| Height: | 17.9 in |
| UNSPSC: | 39122001 |
| UPC: | 00662348089514 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB ACS580-01-027A-4 AC Drive
Brand: ABB Drives
Part Number: ACS580-01-027A-4
ABB AC Drive, 3-Phase Low Voltage General Purpose, Series: ACS580, 380 to 480 VAC Input/480 VAC Output, 27 A, 15 hp, 20 hp, 8 in Width, 9 in Depth, 17.9 in Height, UL Type 1/IP21 Enclosure, Assistant Control Panel Display, Wall Mounting, Sheet Steel, Cool Gray/Traffic Black, Hot Dipped Zinc
Additional Description: ABBD-ACS580-01-027A-4 ACS580 AC DRIVE, 3 480V IN, 20HP, 27A, TYPE 1
Catalog Description: ACS580 AC Drive, 3-380-480V In, 20HP, 27A, Type 1, 1.1 overload, Assistant Standard, HxWxD 19.29x7.99x9.02 in, Wall
ACS580-01-027A-4 Application
For designed to serve a broad range of different variable and constant torque applications, such as conveyors, centrifuges, fans, compressors, pumps, and winders in many industries, including, for example, food and beverage, agriculture, sawmills, automotive and material handlingACS580-01-027A-4 Item Features
- Compact design for easy installation, commissioning and maintenance
- Incoming air temperature measurement for protecting the drive from different temperature related failure mechanisms
- Integrated safety including safe torque off (STO) as standard
- Supports various motor types
- Intuitive control panel with USB connection
- Drive composer PC tool for commissioning and configuration
- Primary control program - common software used throughout the ACS580 drive series
- Control unit supporting a wide range of fieldbuses and input/output options
- Coated boards as standard
- Controllable cooling fan
- Built-in choke
- Adaptive programming
- Color coded connection terminals
- Built-in braking chopper (for frame sizes R1 to R3)
- 20 hp light duty, 15 hp heavy duty horsepower rating
ACS580-01-027A-4 Standards
RoHS Compliant|UL File No. 508C|CE Certified|EAC Approved|Low Voltage Directive 2006/95/EC|EN 61800-5-1 2007|Machinery Directive 2006/42/EC|NEMA 250-2008|EN 61800-5-2 2007|EMC Directive 2004/108/EC|EN 61800-3 2004 + A1 2012|WEEE 2002/96/ECSKU #2350663Part Number #ACS580-01-027A-4UNSPSC39122001UPC00662348089514
Image provided may only be a representation of final product and may include optional equipment
