Part Number # ACS580-01-240A-4
SKU # 2353642
ACS580-01-240A-4

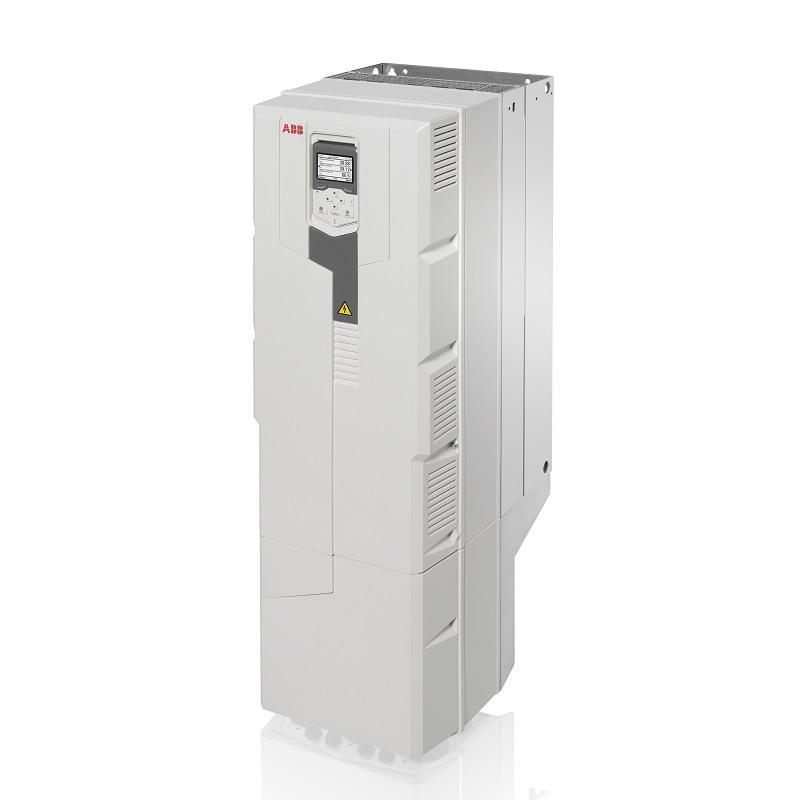

ABB ACS580-01-240A-4 Variable Frequency Drive
Part Number # ACS580-01-240A-4
SKU # 2353642
ABB Drives ACS580-01-240A-4 Key Features
| Brand: | ABB Drives |
|---|---|
| Part Number # : | ACS580-01-240A-4 |
| SKU #: | 2353642 |
| Amperage Rating: | 180/240, 180/240 A |
| Display Type: | LCD |
| Enclosure Type: | IP21 |
| Horsepower: | 150 hp, 200 hp |
| Series: | ACS580 |
| Type: | General Purpose Industrial Low Voltage |
| Depth: | 15-1/2, 15-1/2 in |
| Height: | 38, 38 in |
| Mounting type: | Wall |
| Width: | 11.8, 11.8 in |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122001 |
| UPC: | 00662348089613 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB ACS580-01-240A-4 Variable Frequency Drive
Brand: ABB Drives
Part Number: ACS580-01-240A-4
ABB Variable Frequency Drive, General Purpose Industrial Low Voltage, Series: ACS580, 480 VAC, 180/240 A, 150 hp, 200 hp, 11.8 in Width, 15-1/2 in Depth, 38 in Height, IP21, LCD, Wall Mount
Additional Description: ABBD-ACS580-01-240A-4 ACS580 AC DRIVE, 3 480V IN, 200HP, 240A, TYPE 1
Catalog Description: ACS580 AC Drive, 3-380-480V In, 200HP, 240A, Type 1, 1.1 overload, Assistant Standard, HxWxD 37.99x11.81x15.47 in, Wall
ACS580-01-240A-4 Application
Food and Beverage, Agriculture, Sawmills, Automotive and Material Handling ApplicationsACS580-01-240A-4 Item Features
- Compact design for easy installation, commissioning and maintenance
- Incoming air temperature measurement for protecting the drive from different temperature related failures
- Integrated safety including safe torque off (STO) as standard
- Supports various motor types
- Intuitive control panel with USB connection
- Drive composer PC tool for commissioning and configuration
- Primary control program - common software used throughout the ACS580 drive series
- Control unit supporting a wide range of fieldbuses and input/output options
- Coated boards as standard, controllable cooling fan
- Built-in choke
- Adaptive programming
- Color coded connection terminals
- 240 A, 200 hp (10% overload for 1 min/10 min) light duty ratings, 180 A, 150 hp (50% overload for 1 min/10 min) heavy duty ratings
ACS580-01-240A-4 Standards
RoHS Compliant|UL 508C|NEMA 250-2008|CE Certified|Low Voltage Directive 2006/95/EC|EN 61800-5-1: 2007|Machinery Directive 2006/42/EC|EN 61800-5-2: 2007|EMC Directive 2004/108/EC|EN 61800-3: 2004 + A1: 2012|ACS580-07 (R10/R11) CE|WEEE 2002/96/EC|EAC ListedSKU #2353642Part Number #ACS580-01-240A-4UNSPSC39122001UPC00662348089613
Image provided may only be a representation of final product and may include optional equipment
