Part Number # ACS880-01-027A-5
SKU # 2259903
ACS880-01-027A-5

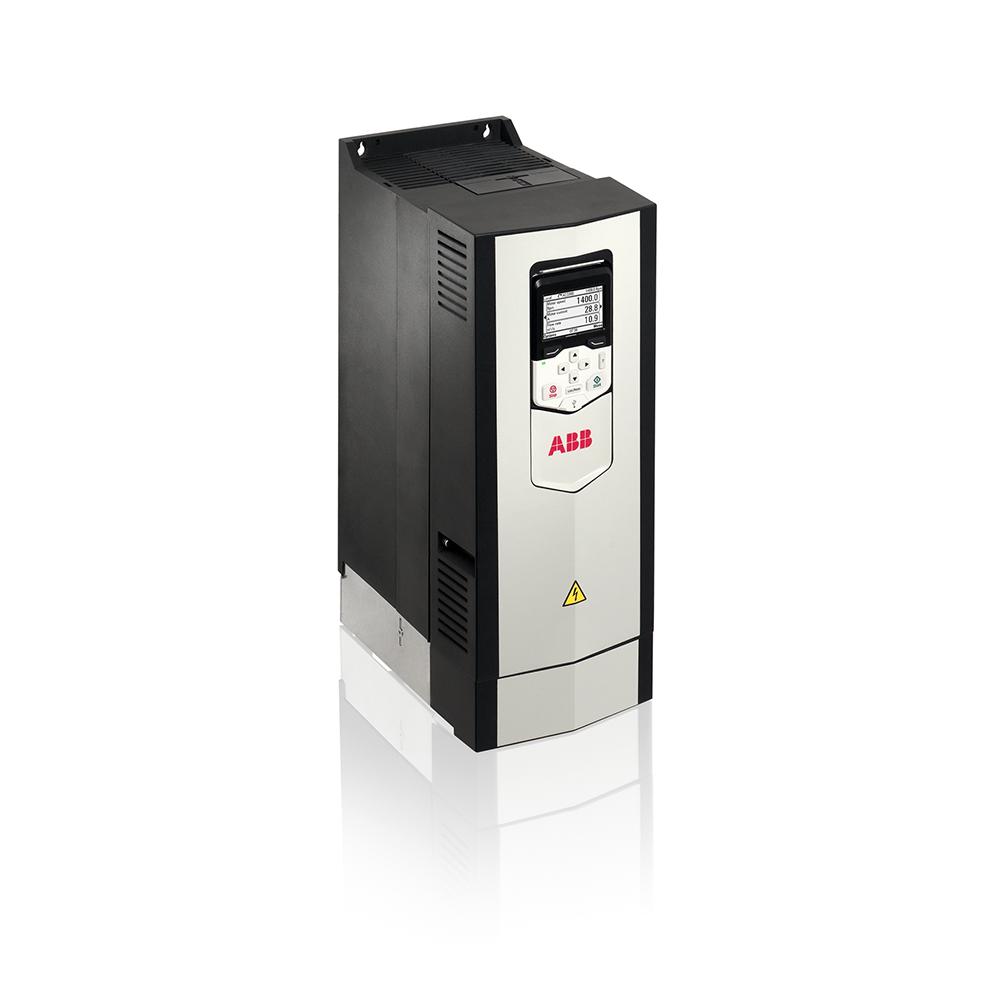

ABB ACS880-01-027A-5 AC Drive
Part Number # ACS880-01-027A-5
SKU # 2259903
ABB Drives ACS880-01-027A-5 Key Features
| Brand: | ABB Drives |
|---|---|
| Part Number # : | ACS880-01-027A-5 |
| SKU #: | 2259903 |
| Depth: | 10.3, 10.3 in |
| Display Type: | Local or Remote Mounted Wireless Bluetooth LCD Display and Keypad |
| Enclosure Type: | UL Type 1/IP21 |
| Finish: | Hot Dipped Zinc |
| Height: | 18-1/2, 18-1/2 in |
| Horsepower: | 15 hp, 20 hp |
| Series: | ACS880 |
| Type: | 3-Phase Low Voltage Single Drive |
| Width: | 6.7, 6.7 in |
| UNSPSC: | 26111721 |
| UPC: | 00662348060650 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB ACS880-01-027A-5 AC Drive
Brand: ABB Drives
Part Number: ACS880-01-027A-5
ABB AC Drive, 3-Phase Low Voltage Single Drive, Series: ACS880, 380 to 500 VAC Input/480 VAC Output, 27 A, 15 hp, 20 hp, 6.7 in Width, 10.3 in Depth, 18-1/2 in Height, UL Type 1/IP21 Enclosure, Local or Remote Mounted Wireless Bluetooth LCD Display and Keypad Display, Wall Mounting, Sheet Steel, Traffic Black, Hot Dipped Zinc
Additional Description: ABBD-ACS880-01-027A-5 ACS880 AC DRIVE, 3 480V IN, 20HP, 27A, TYPE 1
Catalog Description: ACS880 AC Drive, 3-380-500V In, 20HP, 27A, Type 1, 1.1 overload, Assistant Bluetooth, HxWxD 18.7x6.77x10.28 in, Wall
ACS880-01-027A-5 Application
For industries such as oil and gas, mining, metals, chemicals, cement, power plants, material handling, pulp and paper, sawmills and marine, they are designed to control a wide range of applications including cranes, extruders, winches, winders, conveyors, mixers, compressors, pumps and fansACS880-01-027A-5 Item Features
- Compact design for easy installation, commissioning and maintenance
- Integrated safety including safe torque off (STO) as standard and the optional safety functions module (TUV Nord certificate)
- Supports various motor types including synchronous reluctance motors
- Intuitive control panel with USB connection
- Removable memory unit for easy maintenance
- Drive composer PC tool for commissioning and configuration
- Primary control program - common software used throughout the ACS580 drive series
- Control unit supporting a wide range of fieldbuses, feedback devices and input/output options
- Coated boards as standard
- Controllable cooling fan
- Incoming air temperature measurement for protecting the drive from different temperature related failure mechanisms
- Built-in choke
- Built-in braking chopper
- 20 hp light duty, 15 hp heavy duty horsepower rating
ACS880-01-027A-5 Standards
RoHS Compliant|cUL File No. 508A/508C|UL Listed|CE Certified|CSA C22.2 File No. 14-10|Low Voltage Directive 2006/95/EC|Machinery Directive 2006/42/EC|EMC Directive 2004/108/EC|Quality Assurance System ISO 9001|Environmental System ISO 14001|C-Tick Marked|EAC 4|Functional Safety STO TUV Nord Certified|ATEX Safe Disconnection Function Ex II (2) GD 5SKU #2259903Part Number #ACS880-01-027A-5UNSPSC26111721UPC00662348060650
Image provided may only be a representation of final product and may include optional equipment
