Part Number # AF09-30-01-14
SKU # 2433722
Image Disclaimers Message
Brand: ABB

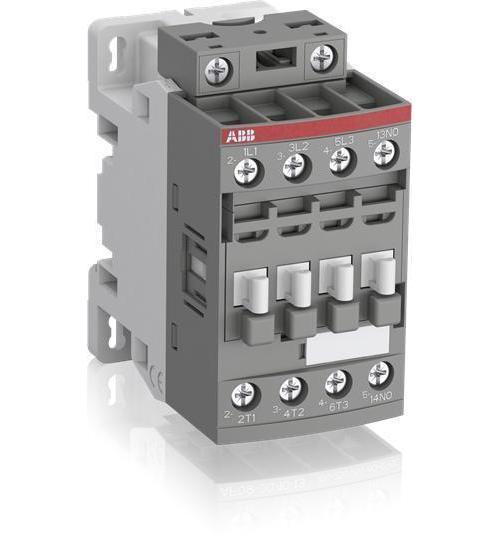

AF09-30-01-14
ABB AF09-30-01-14
Part Number # AF09-30-01-14
SKU # 2433722
$60.54 / Each
Typical price:$112.41 / Each
ABB AF09-30-01-14 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09-30-01-14 |
| SKU #: | 2433722 |
| Coil Power Rating: | 4 kW, 5 hp, 7-1/2 hp |
| Coil Voltage: | 250 to 500 V AC/DC, 250 to 500 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -60 to 80 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110144 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$60.54 / Each
Typical price:$112.41 / Each
Quantity:
- ABB IEC Contactor, AC/DC Operated, 250 to 500 V AC/DC Coil, 9 A Maximum Load Current, 4 kW, 5 hp, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 1NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -60 to 80 deg C Operating, 86 mm H x 45 mm W x 77 mm D Dimensions
AF09-30-01-14 Application
For controlling 3-phase motors, power circuits up to 690VAC and 220VDC, non-inductive or slightly inductive loadsAF09-30-01-14 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 4 kW at 3-phase 400 V IEC, 5 hp at 440 to 480 VAC, 7-1/2 hp at 550 to 600 VAC
- 9 A at 550 to 600 VAC 3-phase UL/CSA
AF09-30-01-14 Standards
RoHS Compliant|IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 508|CSA C22.2 File No. 14|CB Certified|CCC Compliant|cUL Listed|CE Certified|DNV Approved|EAC Approved|RINA ApprovedSKU #2433722Part Number #AF09-30-01-14UNSPSC39121529UPC03471523110144
