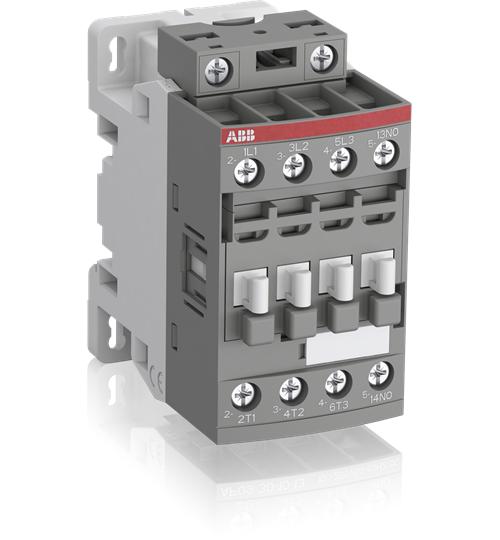

ABB AF09-30-10-11 Contactor
Part Number # AF09-30-10-11
SKU # 2221602
ABB AF09-30-10-11 Key Features
ABB AF09-30-10-11 Contactor
Brand: ABB
Part Number: AF09-30-10-11
ABB Contactor, Series: AF09, 24 to 60 VAC, 20 to 60 VDC Coil, 25 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 77 mm D Dimensions
Additional Description: ABB -AF09-30-10-11 AF09 3P CONTR, 1NO, 24-60VAC, 20 24-60VAC, 20-60VDC COIL
Catalog Description: AF09 contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC o
AF09-30-10-11 Application
For controlling 3-phase motors, non-inductive or slightly inductive loadsAF09-30-10-11 Item Features
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
AF09-30-10-11 Standards
RoHS Compliant|cUL Listed|UL 508|UL File No. E312527|IEC/EN 60947-1/60947-4-1|CSA C22.2 No. 14|CB Certified|CCC Certified|CE Certified|DNV Certified|EAC Approved|RINA CertifiedSKU #2221602Part Number #AF09-30-10-11UNSPSC39121529UPC03471523110014
