Part Number # AF09-30-10-12
SKU # 2228351
Image Disclaimers Message
AF09-30-10-12

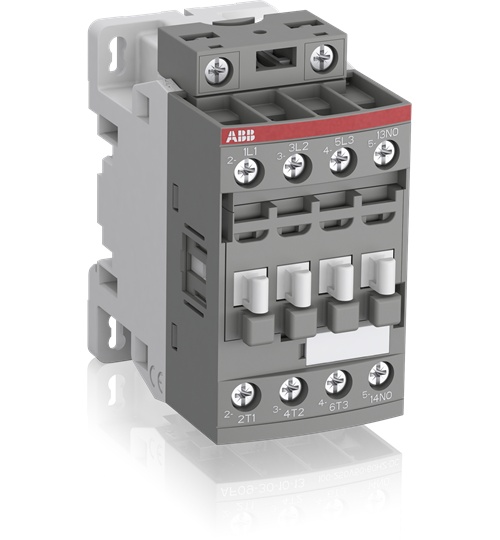

ABB AF09-30-10-12 Contactor
Part Number # AF09-30-10-12
SKU # 2228351
$72.49 / Each
Typical price:$134.62 / Each
ABB AF09-30-10-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09-30-10-12 |
| SKU #: | 2228351 |
| Coil Voltage: | 48 V AC, 130 V DC, 48 VAC, 130 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 690, 690 V AC, 690 VAC |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 3600, 3600 Cycles |
| Operating Temperature: | -60 to 80, -60 to 80 deg C |
| Series: | AF09 |
| Terminal Type: | Screw |
| Wattage: | 5.5, 5.5 kW |
| Country of origin: | FR |
| Mounting type: | DIN Rail, Front/Side |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110021 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$72.49 / Each
Typical price:$134.62 / Each
Quantity:
- ABB Contactor, Series: AF09, 48 V AC, 130 V DC Coil, 25 A Maximum Load Current, 3 Pole, 50/60 Hz Frequency, 5.5 kW Wattage, Non-Reversing Contact, 3NO Contact Configuration, 1NO Auxiliary Contacts, 690 VAC Contact, Screw Terminal, IP20 Enclosure, 3600 Cycles Operating Cycles, -60 to 80 deg C Operating, DIN Rail Mounting, 86 mm H x 45 mm W x 77 mm D Dimensions
AF09-30-10-12 Application
For controlling 3-phase motors, non-inductive or slightly inductive loadsAF09-30-10-12 Item Features
- Non-reversing across the line contactor
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- AC or DC operated with electronic coil interface accepting a wide control voltage range, only 4 control voltage ranges covering 24 to 500 VAC, 50/60 Hz and 20 to 500 VDC can manage large control voltage variations
AF09-30-10-12 Standards
RoHS Compliant|cUL Listed|UL 508|UL File No. E312527|IEC/EN 60947-1/60947-4-1|CSA C22.2 No. 14|CB Certified|CCC Certified|CE Certified|DNV Certified|EAC Approved|RINA CertifiedSKU #2228351Part Number #AF09-30-10-12UNSPSC39121529UPC03471523110021
