AF09-30-22-12

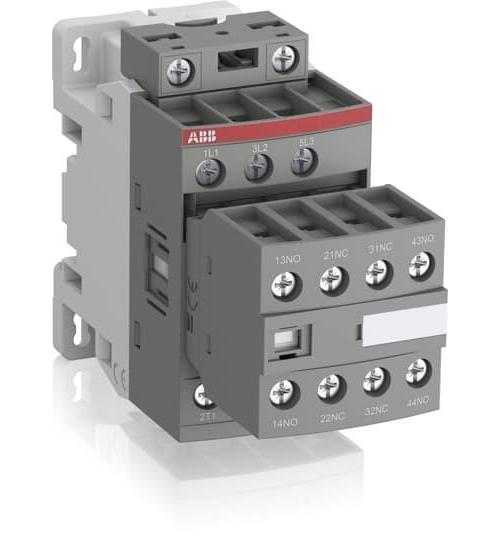

ABB AF09-30-22-12 Line Contactor
Part Number # AF09-30-22-12
SKU # 2300145
$104.16 / Each
Typical price:$193.44 / Each
ABB AF09-30-22-12 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09-30-22-12 |
| SKU #: | 2300145 |
| Coil Power Rating: | 2 hp, 5 hp, 7-1/2 hp, 3/4 hp, 1-1/2 hp |
| Coil Voltage: | 48 to 130, 48 to 130 V AC/DC, 48 to 130 VAC/VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 25 A at 690 V |
| Dimensions: | 45 mm W x 110.5 mm D x 86 mm H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -40 to 70, -40 to 70 deg C |
| Series: | AF Series |
| Size: | AF09 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 2.2/4/5.5, 2.2/4/5.5 kW |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110229 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$104.16 / Each
Typical price:$193.44 / Each
Quantity:
- ABB Line Contactor, Non-Reversing, Series: AF Series, 48 to 130 V AC/DC Coil, 25 A Maximum Load Current, 2 hp, 5 hp, 7-1/2 hp, 3/4 hp, 1-1/2 hp Coil, 3 Pole, 2.2/4/5.5 kW Wattage, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, 25 A at 690 V Contact, AF09 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 45 mm W x 110.5 mm D x 86 mm H Dimensions
AF09-30-22-12 Application
For controlling 3 ph motors, non-inductive or slightly inductive loadsAF09-30-22-12 Item Features
- Control circuit - AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and VDC), only 4 control voltage ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- Add-on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 25 A at 690 V, 22 A at 690 V rated operational current AC-1
- 9 A at 220/230/240 V, 9 A at 380/400 V, 9 A at 415 V, 9 A at 440 V, 9.5 A at 500 V, 7 A at 690 V rated operational current AC-3
- 2 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 7-1/2 hp at 550 to 600 VAC 3 ph, 3/4 hp at 120 VAC 1 ph, 2 hp at 200 to 208 VAC 3 ph, 1-1/2 hp at 240 VAC 1 ph
- 2.2 kW at 220/230/240 V, 4 kW at 380/400 V, 4 kW at 415 V, 4 kW at 440 V, 5.5 kW at 500 V, 5.5 kW at 690 V, 4 kW at 400 V
AF09-30-22-12 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|DNV GL Certified|LR Certified|RMRS CertifiedSKU #2300145Part Number #AF09-30-22-12UNSPSC39121529UPC03471523110229
