Part Number # AF09-30-22-13
SKU # 2409342
Image Disclaimers Message
AF09-30-22-13

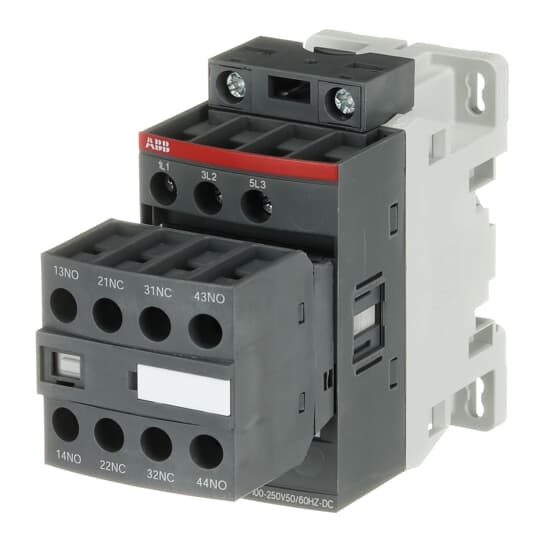

ABB AF09-30-22-13 Iec Contactor
Part Number # AF09-30-22-13
SKU # 2409342
$92.21 / Each
Typical price:$171.22 / Each
ABB AF09-30-22-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09-30-22-13 |
| SKU #: | 2409342 |
| Coil Power Rating: | 4 kW, 5 hp, 7-1/2 hp |
| Coil Voltage: | 100 to 250 V AC/DC, 100 to 250 VAC/VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 86 mm H x 45 mm W x 110.5 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 2NO-2NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -40 to 70 deg C |
| Terminal Type: | Screw |
| Type: | AC/DC Operated |
| Connection type: | Cable Clamp |
| Country of origin: | FR |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523110236 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$92.21 / Each
Typical price:$171.22 / Each
Quantity:
- ABB IEC Contactor, AC/DC Operated, 100 to 250 V AC/DC Coil, 9 A Maximum Load Current, 4 kW, 5 hp, 7-1/2 hp Coil, 3 Pole, 50/60 Hz Frequency, 3NO Contact Configuration, 2NO-2NC Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -40 to 70 deg C Operating, 86 mm H x 45 mm W x 110.5 mm D Dimensions
AF09-30-22-13 Application
For controlling 3-phase motors and power circuits up to 690 VAC and 220 VDCAF09-30-22-13 Item Features
- Control circuit: AC or DC operated with electronic coil interface accepting a wide control voltage range (e.g. 100 to 250 VAC and DC), only 4 control voltages ranges covering 24 to 500 V 50/60 Hz and 20 to 500 VDC
- Can manage large control voltage variations
- Reduced panel energy consumption
- Very distinct closing and opening
- Built-in surge suppression
- 4 kW at 3-phase 400 V IEC, 5 hp at 440 to 480 VAC, 7-1/2 hp at 550 to 600 VAC
- 9 A at 550 to 600 VAC 3-phase UL/CSA
AF09-30-22-13 Standards
IEC 60947-1|IEC 60947-4-1|EN 60947-1|EN 60947-4-1|UL 508|CSA 22.2 60947-4-1SKU #2409342Part Number #AF09-30-22-13UNSPSC39121529UPC03471523110236
