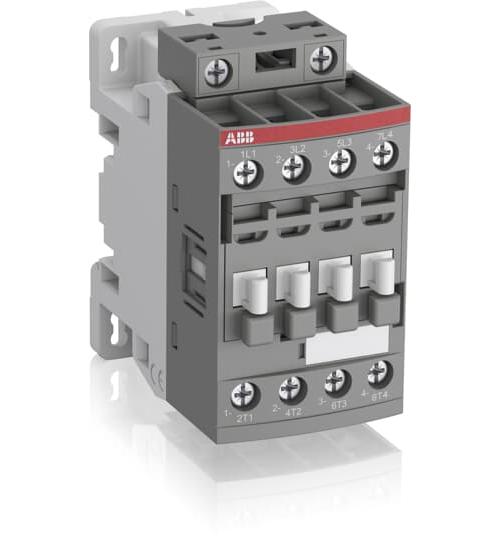

AF09-40-00-13
ABB AF09-40-00-13 IEC Contactor, 100 VAC, 250 VDC V Coil, 25 A, 4NO Contact, 4 Poles
Part Number # AF09-40-00-13
SKU # 2278541
ABB AF09-40-00-13 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09-40-00-13 |
| SKU #: | 2278541 |
| Coil Power Rating: | 7-1/2 hp |
| Coil Voltage: | 100 V AC, 250 V DC, 100 VAC, 250 VDC |
| Contact Configuration: | 4NO |
| Dimensions: | 86 mm H x 45 mm W x 77 mm D |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Poles: | 4 |
| Operating Temperature: | -40 to 70 deg C |
| Series: | AF09 |
| Size: | SZ 09 |
| Terminal Type: | Screw |
| Wattage: | 5.5 kW |
| Country of origin: | FR |
| Mounting type: | DIN Rail |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523115033 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF09-40-00-13 IEC Contactor, 100 VAC, 250 VDC V Coil, 25 A, 4NO Contact, 4 Poles
Brand: ABB
Part Number: AF09-40-00-13
Additional Description: ABB -AF09-40-00-13 AF09 4P CONTR, 100-250VAC/DC
Catalog Description: AF09 4-pole contactors are used for controlling power circuits up to 690 V AC and 440 V DC. They are mainly used for controlling non-inductive or slightly inductive loads (i.e. resistance furnaces...). AF... contactors include an electronic coil interface accepting a wide control voltage Uc min. ... Uc max. Only four coils cover control voltages between 24...500 V 50/60 Hz or 20...500 V DC. AF contactors can manage large control voltage variations. One coil can be used for different control voltages used worldwide without any coil change. AF contactors have built-in surge protection and do not require additional surge suppressors. The AF... series 4-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 4 N.O. main poles, front and side-mounted add-on auxiliary contact blocks (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Control circuit: AC or DC operate
AF09-40-00-13 Specifications
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1
- 6 kV rated impulse withstand voltage
- 600/690 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 0.75 hp at 120 VAC, 1.5 hp at 240 VAC 1-phase 2 hp at 200/208 VAC, 2 hp at 220/240 VAC, 5 hp at 440/480 VAC, 7.5 hp at 550/600 VAC 3-phase power rating
AF09-40-00-13 Application
For controlling non-inductive or slightly inductive loadsAF09-40-00-13 Includes
Surge SupressionAF09-40-00-13 Item Features
- AF contactors can manage large control voltage variations one coil can be used for different control voltages used worldwide without any coil change
- AF series contactor coils are designed to utilize both AC (50/60 Hz) and DC control circuit inputs ranging from 24 to 500 VAC
- Main poles and auxiliary contact blocks 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks (mechanically linked auxiliary contacts compliant with Annex L of IEC 60947-5-1
- 6 kV rated impulse withstand voltage
- 600/690 VAC rated insulation voltage
- 3000 m maximum operating altitude permissible
- 0.75 hp at 120 VAC, 1.5 hp at 240 VAC 1-phase 2 hp at 200/208 VAC, 2 hp at 220/240 VAC, 5 hp at 440/480 VAC, 7.5 hp at 550/600 VAC 3-phase power rating
AF09-40-00-13 Standards
RoHS Compliant|UL 508|CSA C22.2 No. 14|IEC/EN 60947-4-1|IEC/EN 60947-4-1A|IEC/EN 60947-4-1-07|CE Certified|CB Certified|CCC Certified|cUL Listed|DNV Certified|EAC Approved|RINA CertifiedSKU #2278541Part Number #AF09-40-00-13UNSPSC39121529UPC03471523115033
