Part Number # AF09Z-30-10-30
SKU # 2370708
Image provided may only be a representation of
final product and may include optional equipment
AF09Z-30-10-30

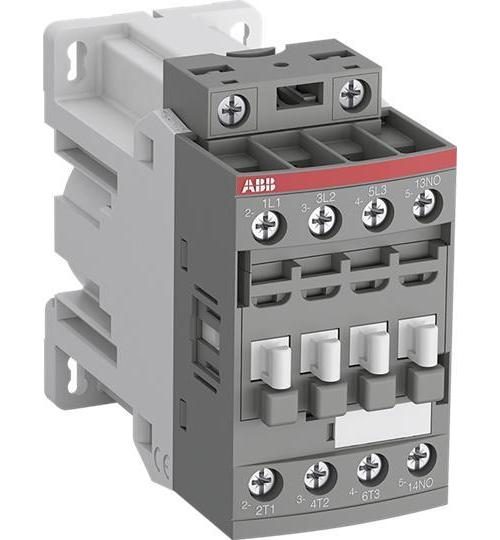

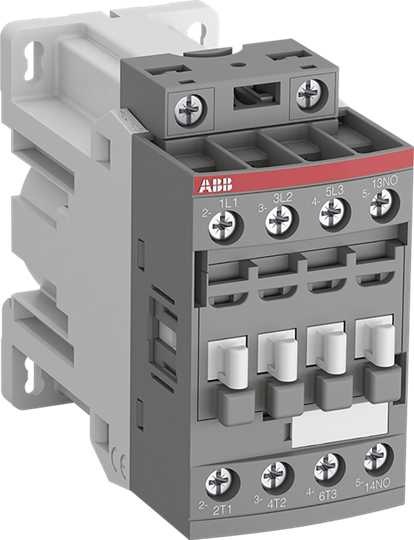

ABB AF09Z-30-10-30 Contactor
Part Number # AF09Z-30-10-30
SKU # 2370708
ABB AF09Z-30-10-30 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | AF09Z-30-10-30 |
| SKU #: | 2370708 |
| Coil Power Rating: | 2.2/4/5.5 kW |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Contact Rating: | 25 A at 600 V AC, 25 A at 600 VAC |
| Dimensions: | 45 mm W x 97 mm D x 86 mm H |
| Enclosure Type: | IP20/IP40 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 3600 Cycles |
| Operating Temperature: | -60 to 80 deg C |
| Series: | AF09Z |
| Terminal Type: | Screw |
| Wattage: | 144 W |
| Connection type: | Screw Terminal |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 03471523113299 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB AF09Z-30-10-30 Contactor
Brand: ABB
Part Number: AF09Z-30-10-30
Additional Description: ABB -AF09Z-30-10-30 AF09Z, 3P, 1NO0NC, 24VDC
Catalog Description: AF09Z 3-pole contactors are used for controlling power circuits up to 690 V AC and 220 V DC. They are mainly used for controlling 3-phase motors, non-inductive or slightly inductive loads. AF09Z contactors with coil 30 include a 24 V DC electronic coil interface with a built-in surge suppression, obtaining a reduced holding coil consumption up to 1.7 W for a low panel energy consumption and a direct control by PLC-output ? 250 mA 24 V DC, without need of additional interface relay. Only AF..Z..-30 contactors need to respect the polarity on the coil terminals (A1+ and A2-). The AF... series 1-stack 3-pole contactors are of the block type design. - Main poles and auxiliary contact blocks: 3 main poles, 1 built-in auxiliary contact, front and side-mounted add-on auxiliary contact blocks. (mechanically-linked auxiliary contacts compliant with Annex L of IEC 60947-5-1. N.C. mirror contacts compliant with Annex F of IEC 60947-4-1) - Accessories: a wide range of accessories is available.
AF09Z-30-10-30 Item Features
- Control circuit 24 VDC operated with electronic coil interface allowing low holding consumption up to 1.7 W and reduced panel energy consumption
- Allow direct control by PLC output >=250 mA, 24 VDC
- Very distinct closing and opening
- Built-in surge suppression
- Add on auxiliary contact blocks for front or side mounting and a wide range of accessories
- 2.2 kW at 220/230/240 V, 4 kW at 380/400/415/400 V, 5.5 kW at 500/690 kW
AF09Z-30-10-30 Standards
CB Certified|CCC Certified|CE Certified|CQC Certified|CSA Certified|cUL Listed|DNV Certified|DNV GL Certified|EAC Approved|GL Certified|RINA Certified|RMRS Certified|RoHS EU Directive 2011/65/EU|UL ListedSKU #2370708Part Number #AF09Z-30-10-30UNSPSC39121529UPC03471523113299
